Multi-platform graphics with URP

Arturo Nereu

Unity Technologies

x.com/ArturoNereu

Session Takeaways

Understand URP's features.

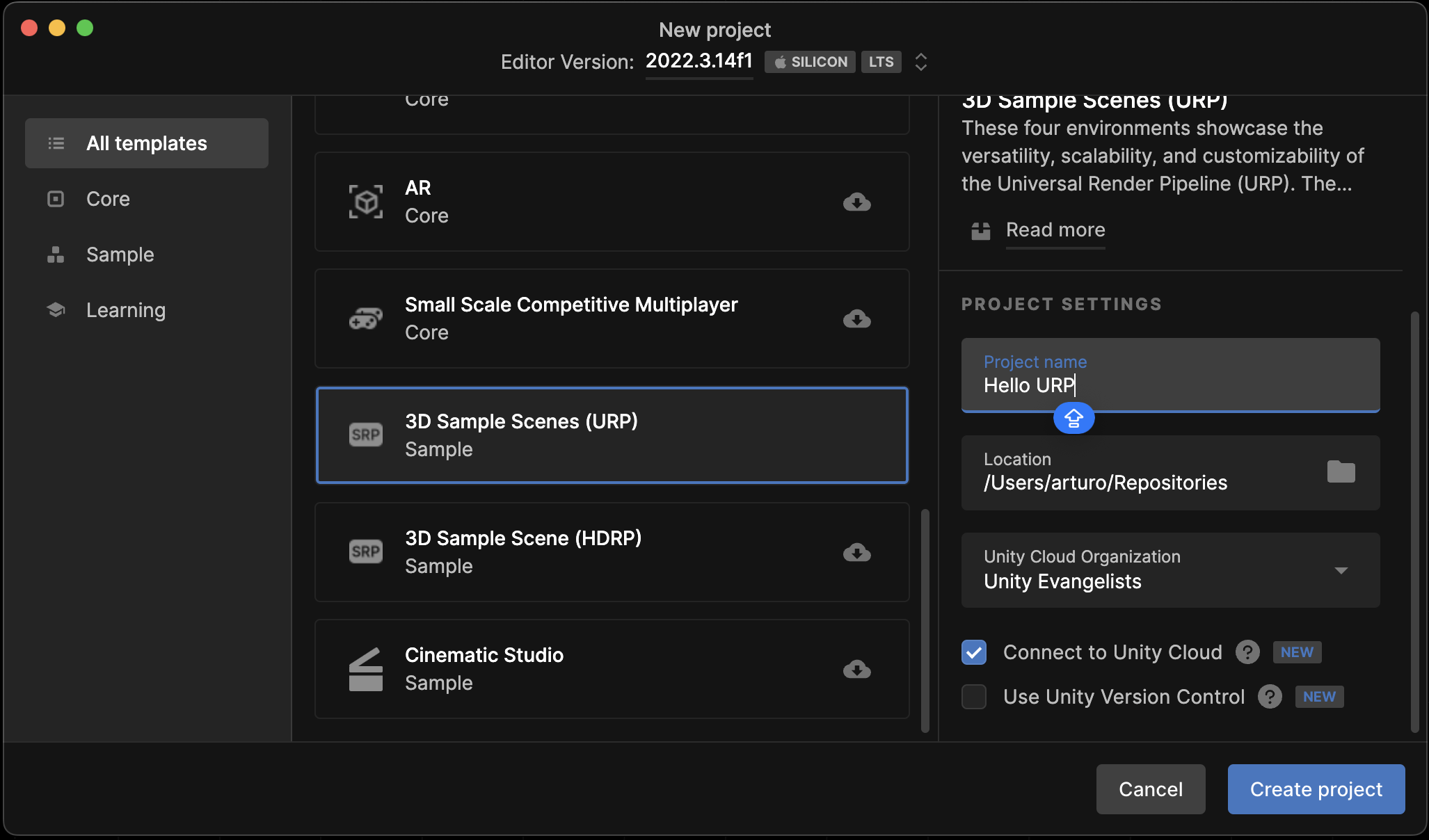

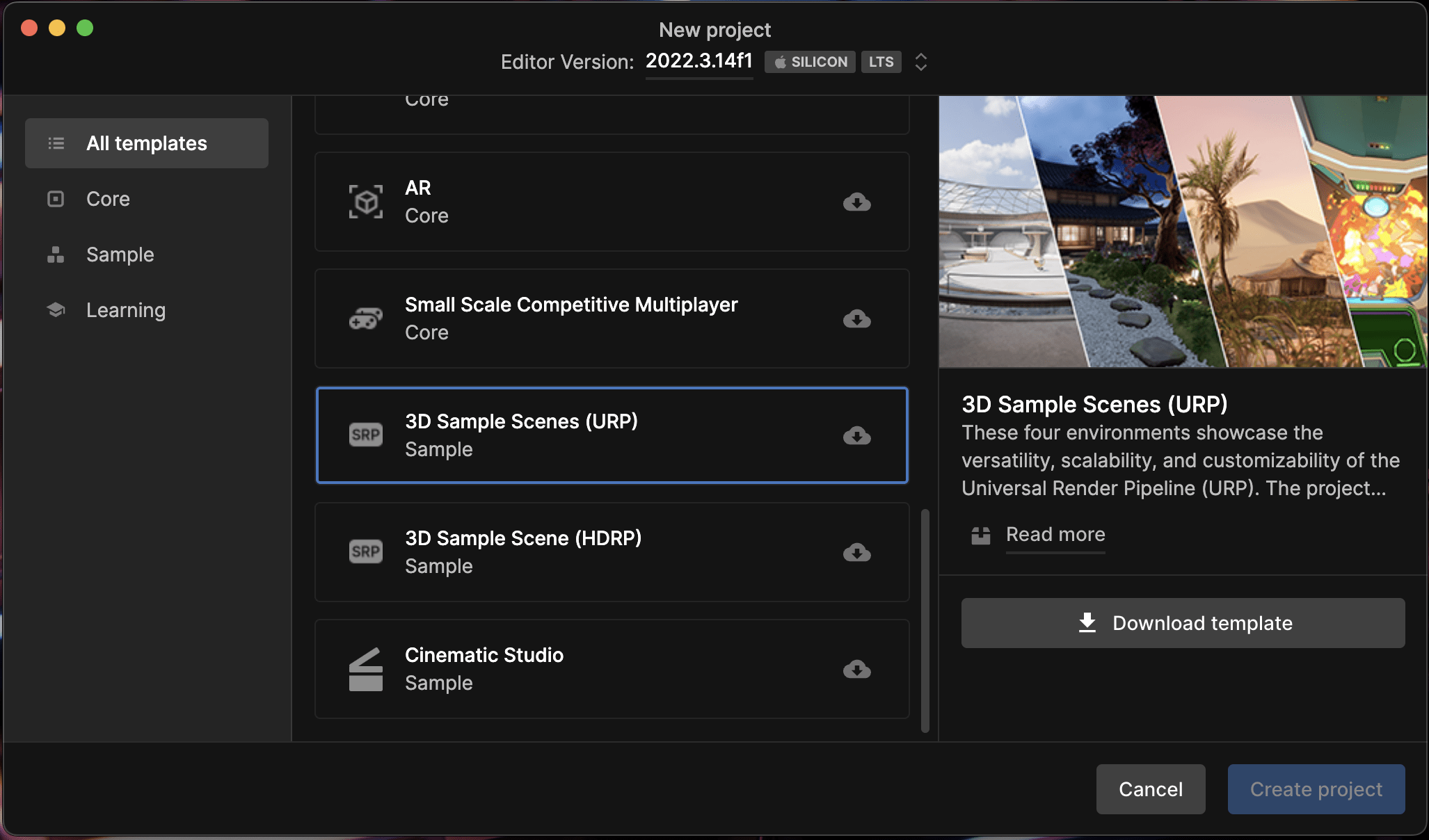

Learn about the new URP 3D Template.
Have fun!

Universal Render Pipeline

Maximum Platform Reach
Extendable and Customizable
Lighting
Cinematic Effects
Artist-friendly
Production ready

URP Platform Support

Title Text

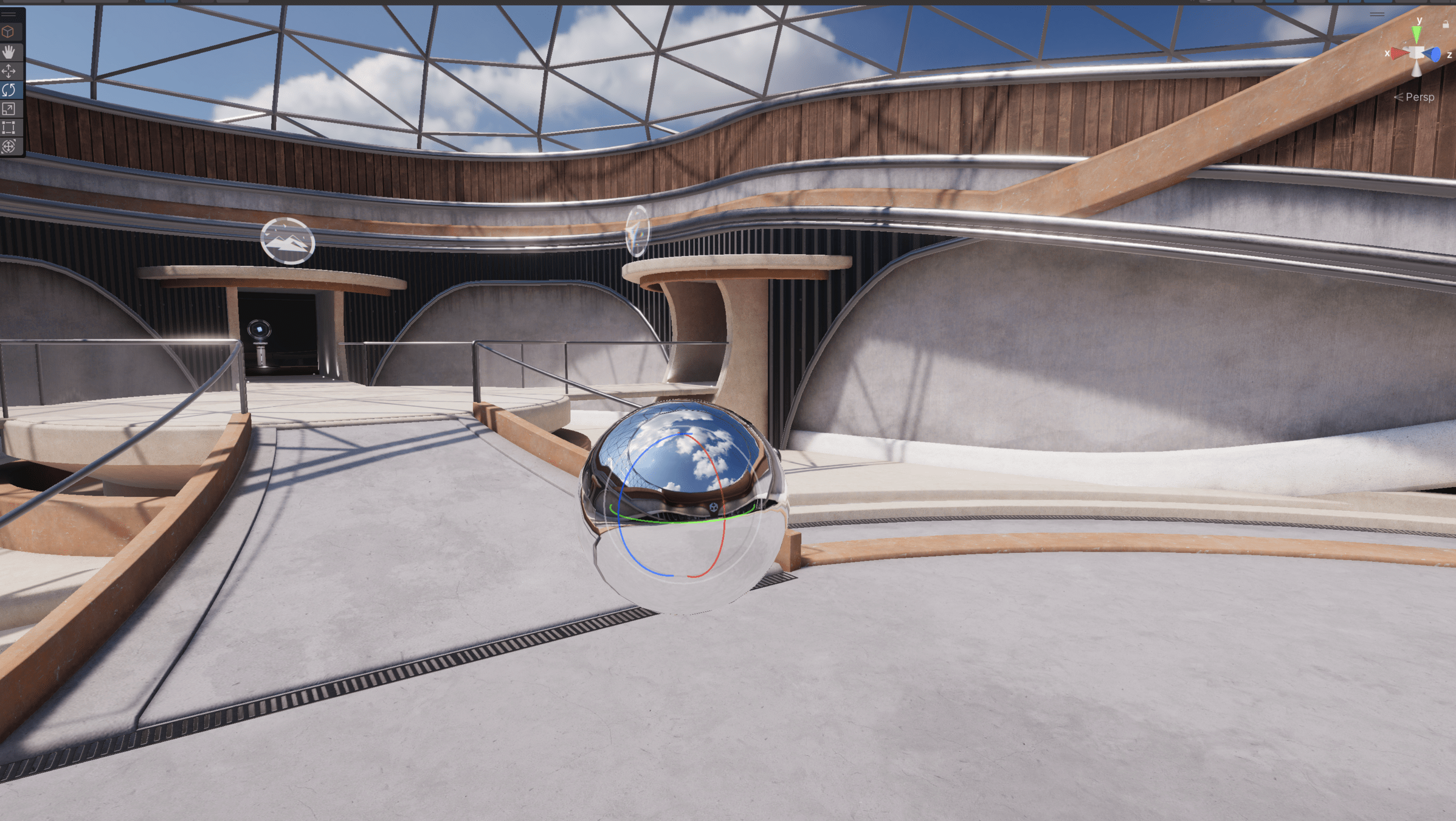

PBR

Physically

Based

Rendering

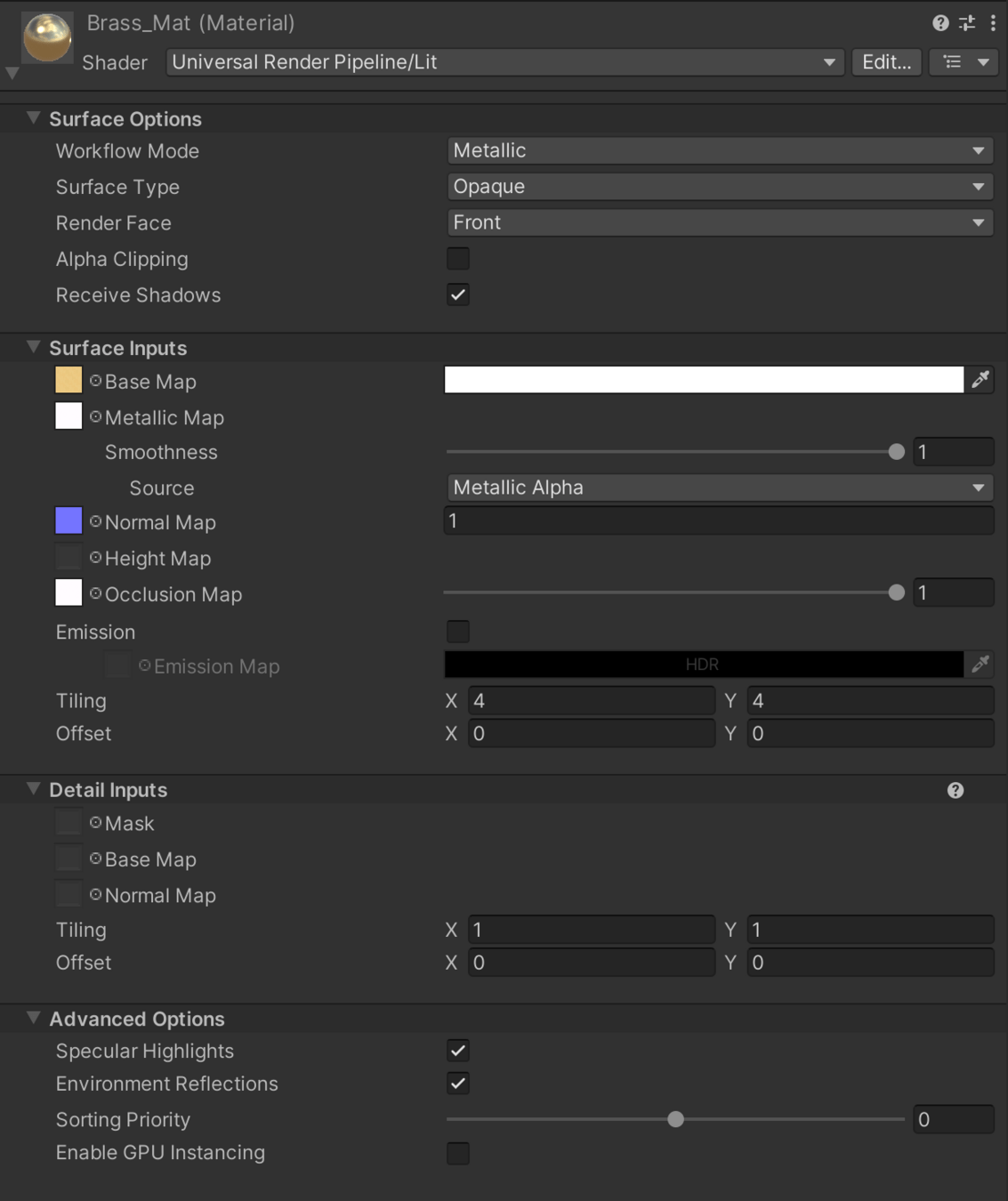

Brass_Mat

Concrete_01_Mat

Glass_Mat

WoodenPlanks_Mat

Lit Shader

RenderTexture

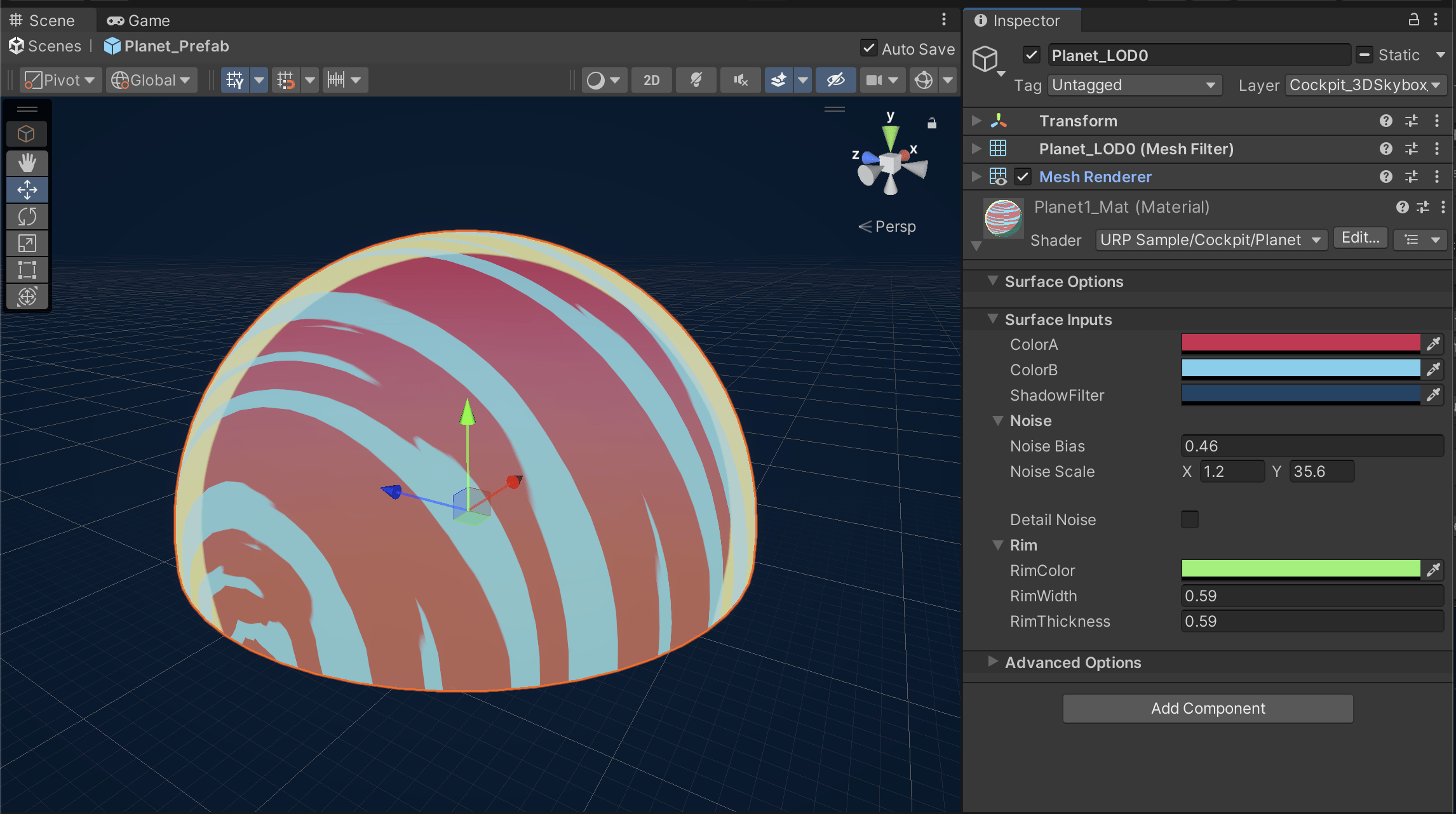

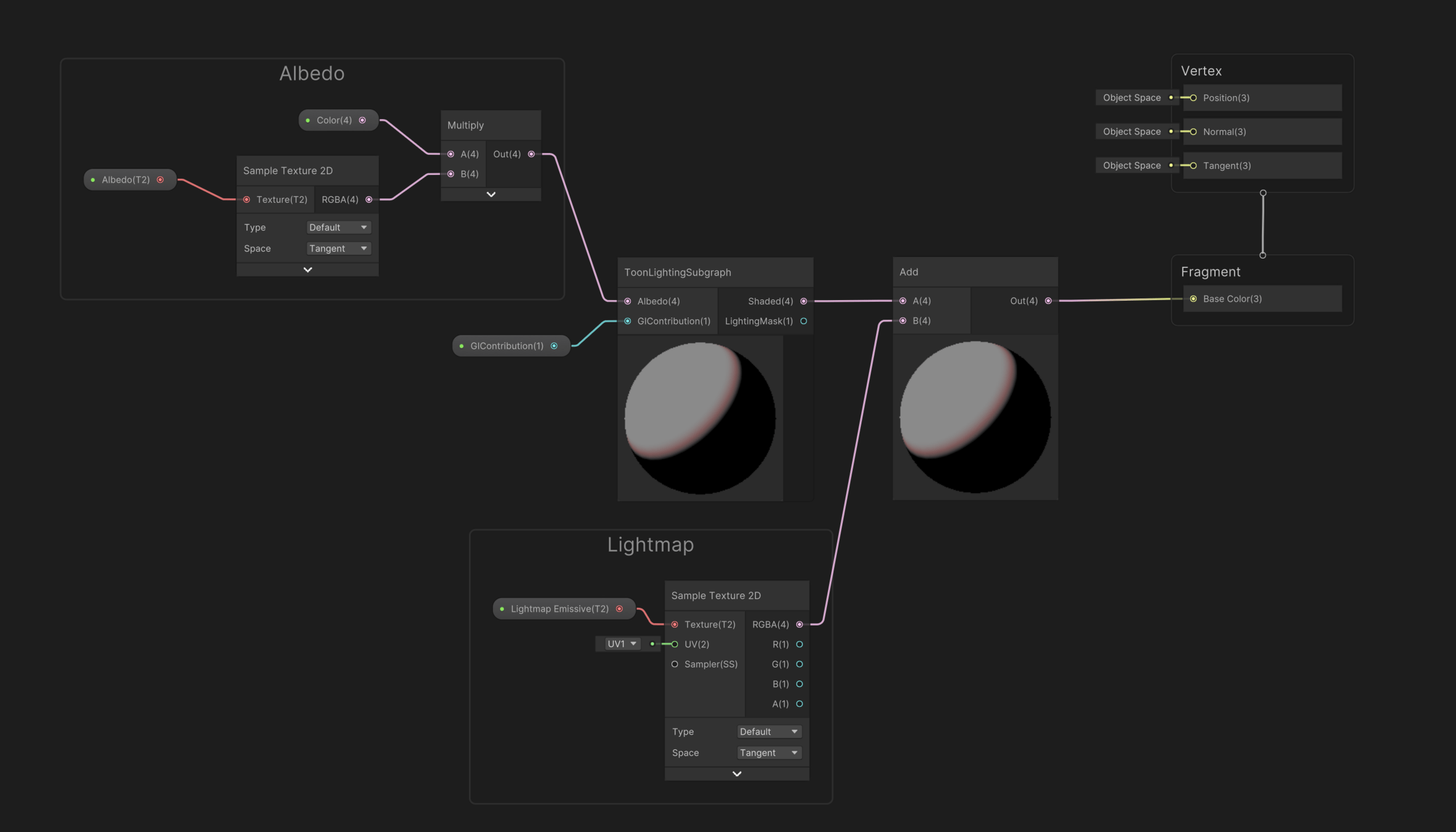

Shader Graph

Properties

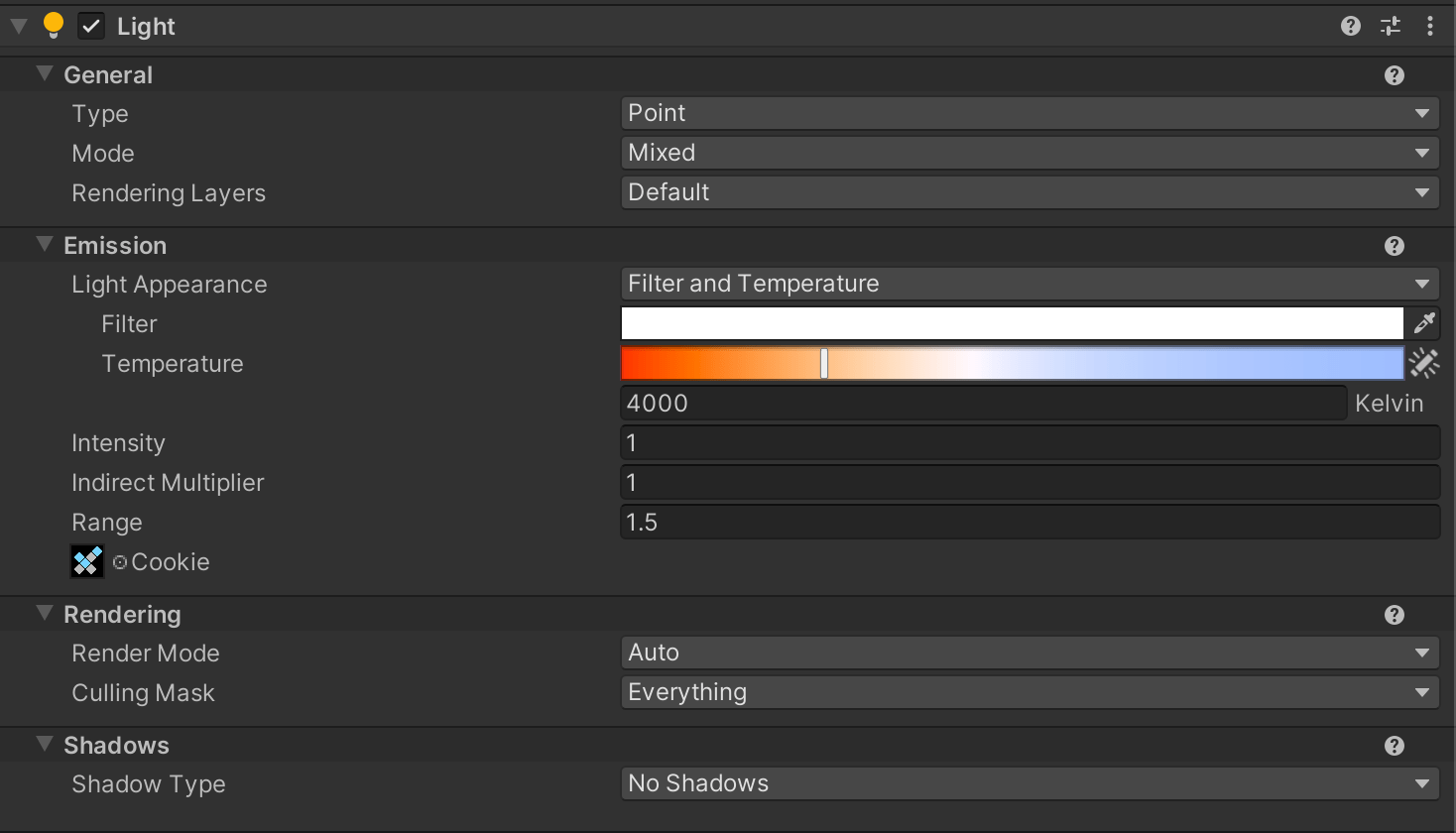

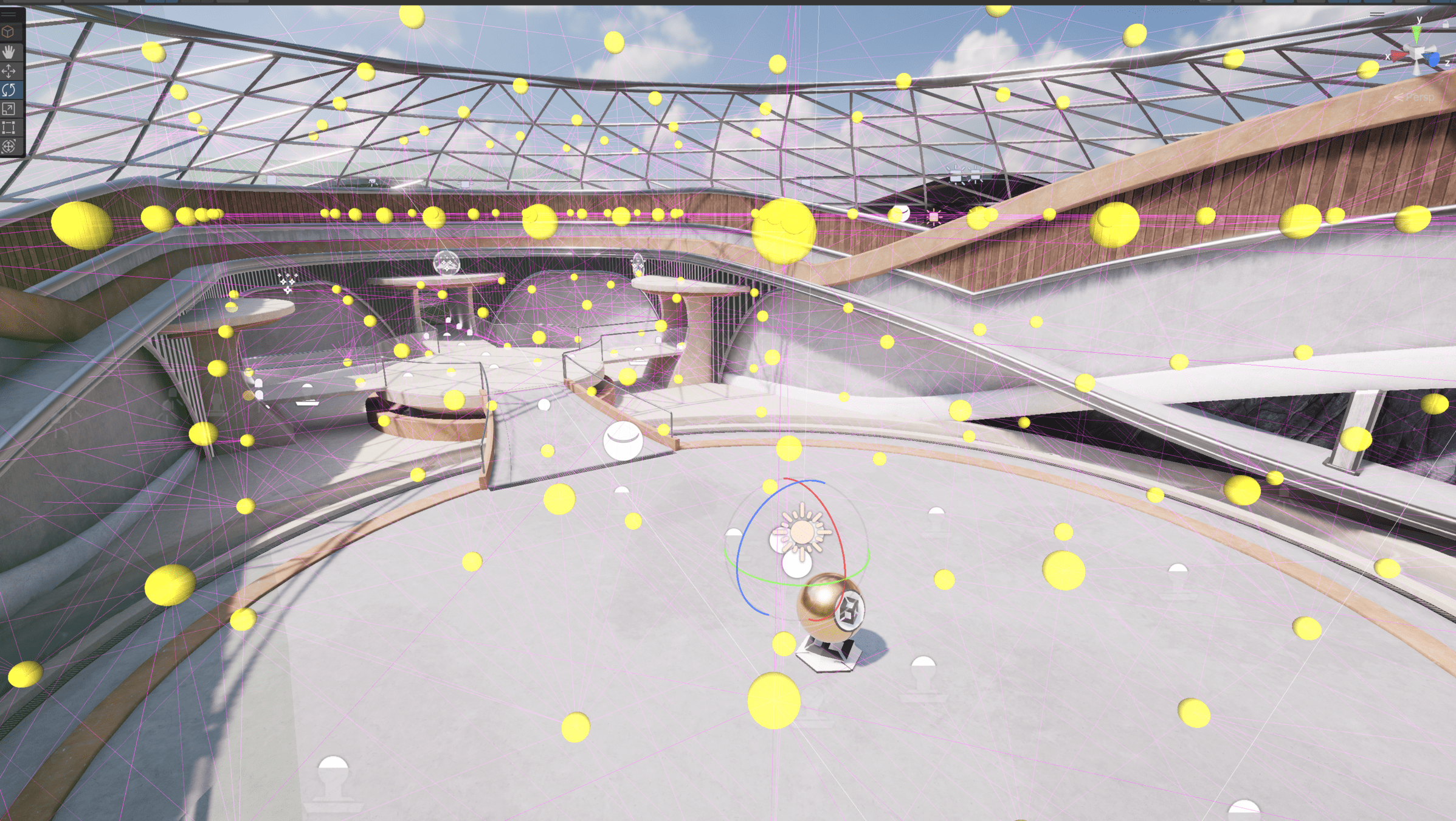

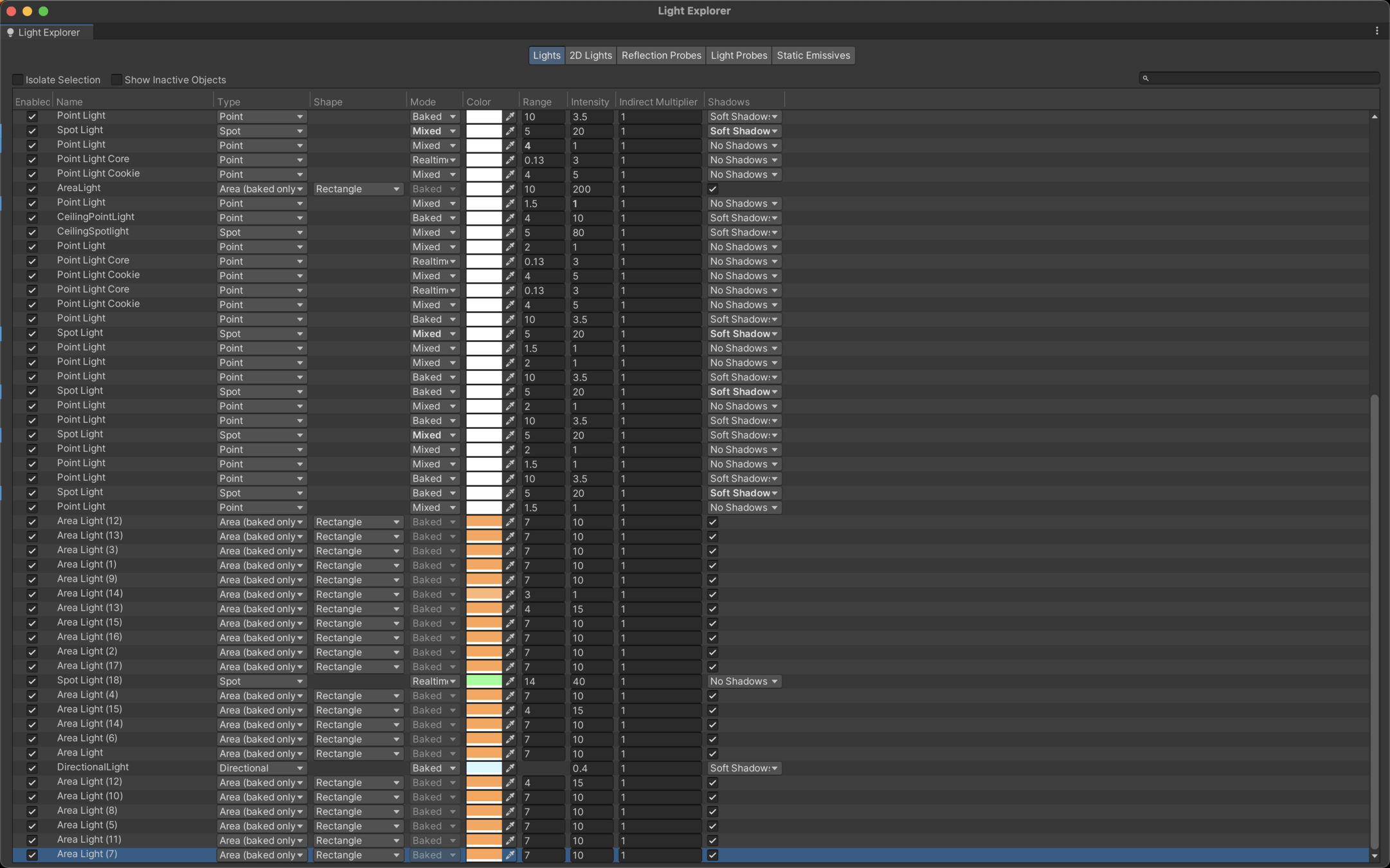

Window > Rendering > Light Explorer

Forward

Per-object light limit.
Easy to customize.
Support for vertex lighting.

Deferred

No per-object limit for opaques.
Harder to customize.
Scales well with many lights.

Forward+

No per-object light limit.
Easy to customize.
Scales well with many lights.
Has increased CPU overhead.

Rendering Paths

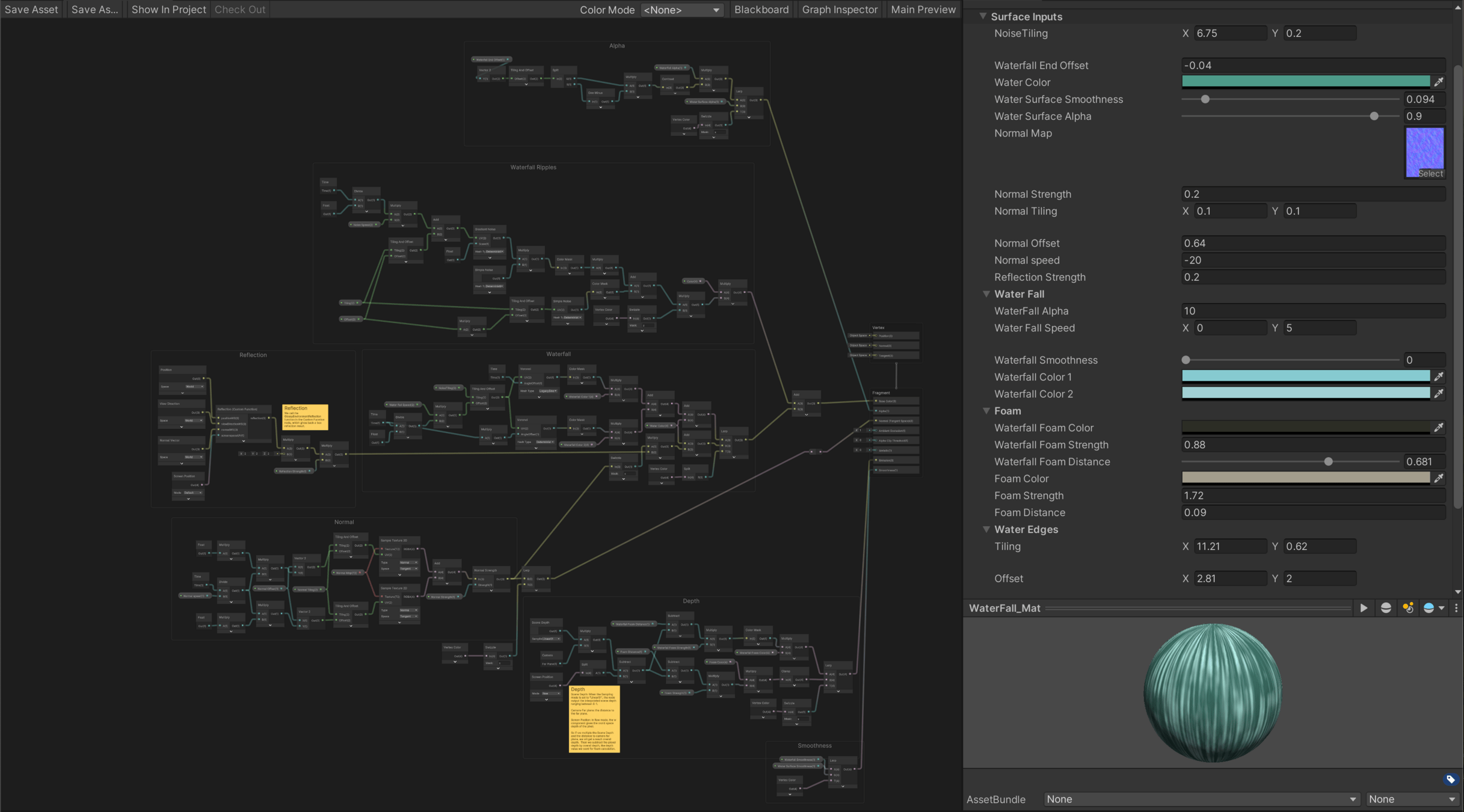

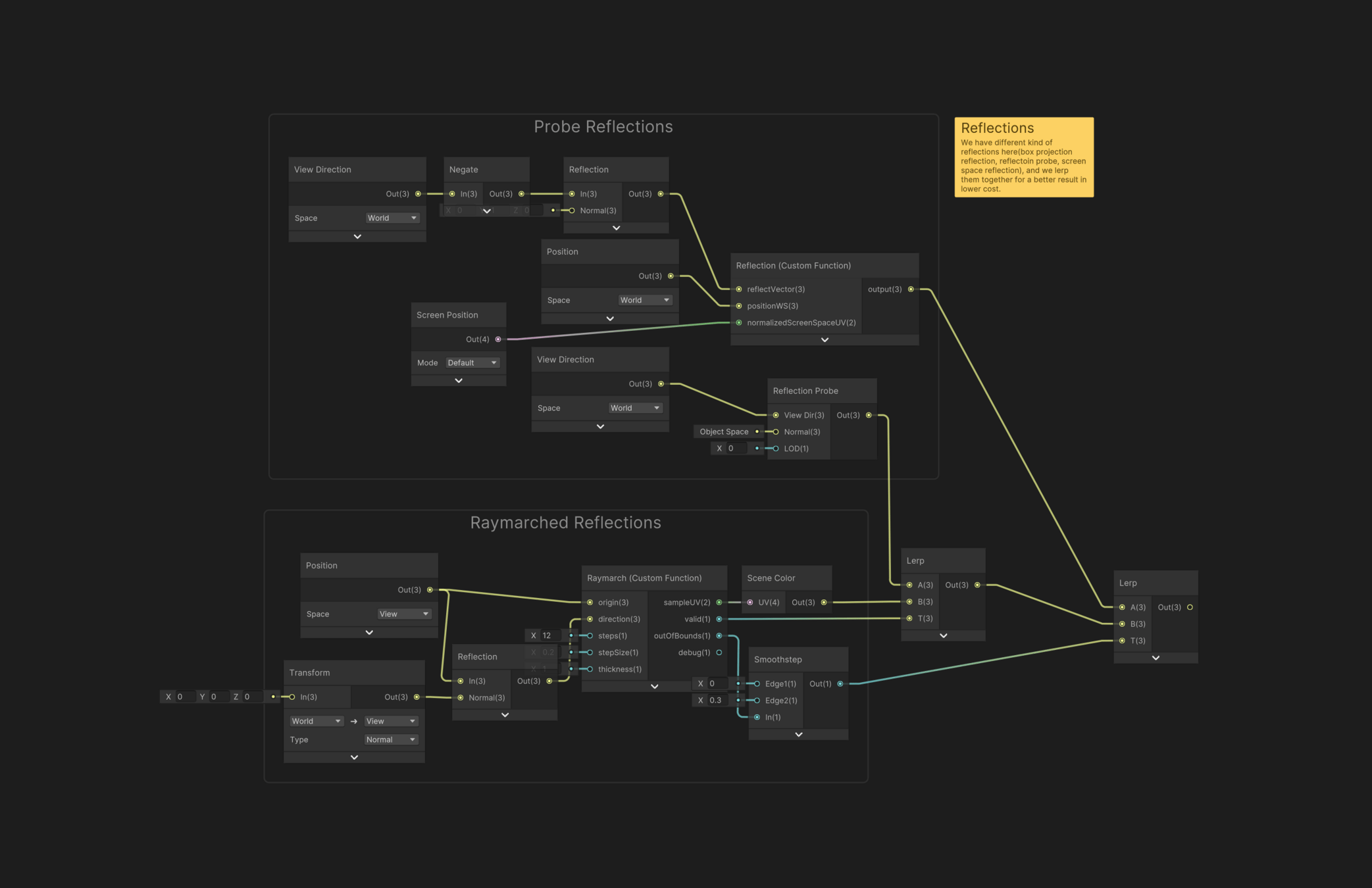

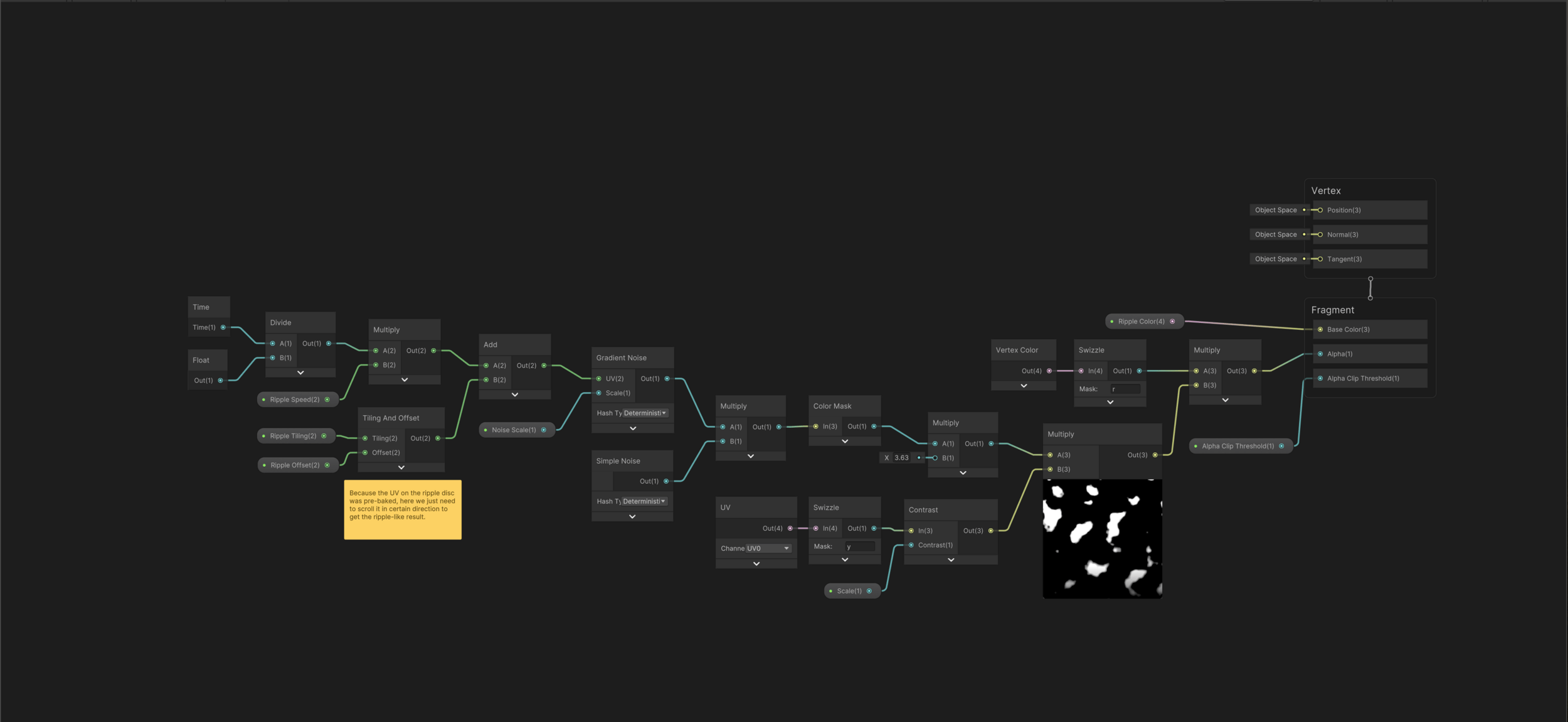

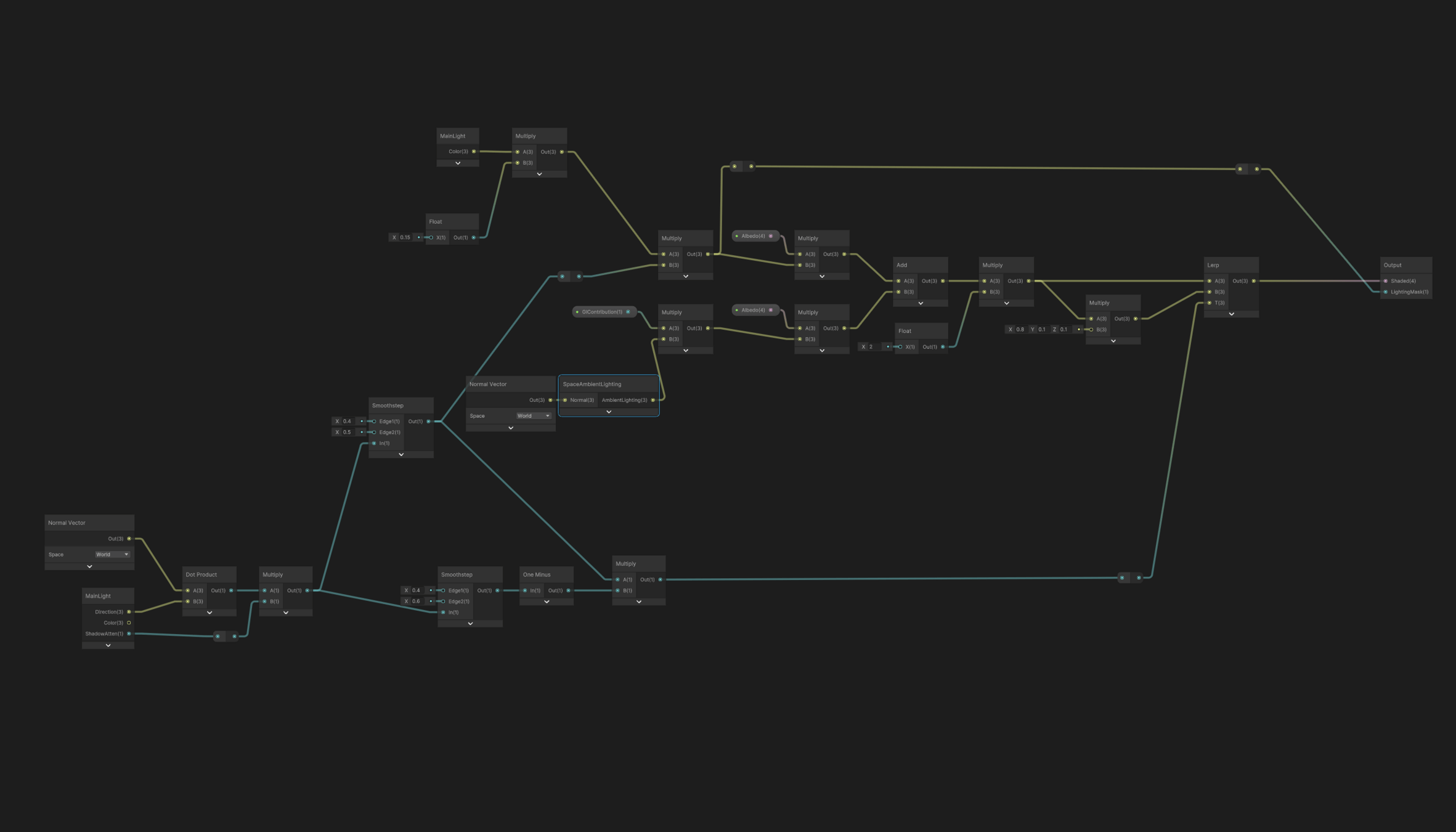

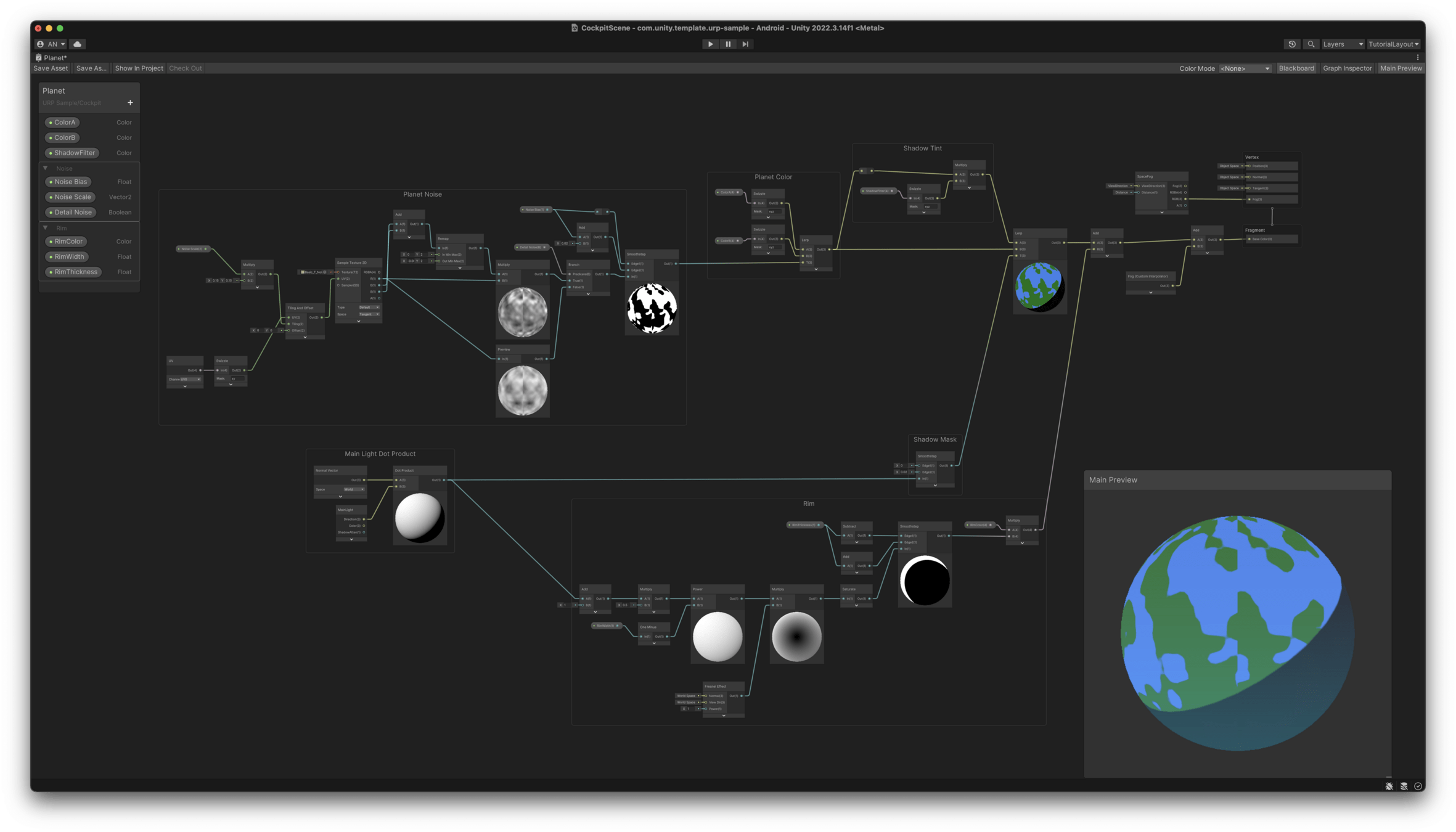

Waterfall_Graph.shadergraph

WaterfallRipple_Graph.shadergraph

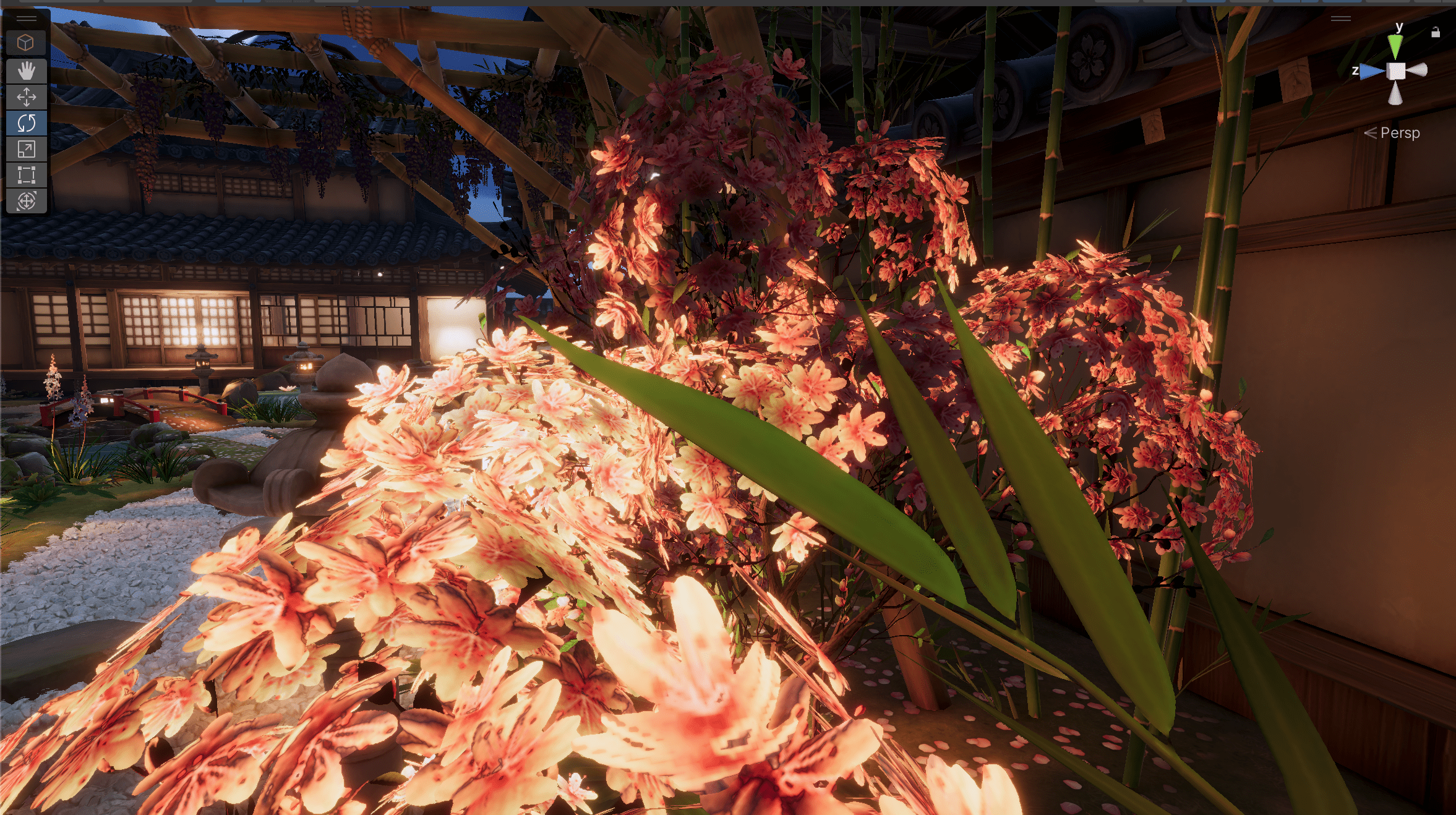

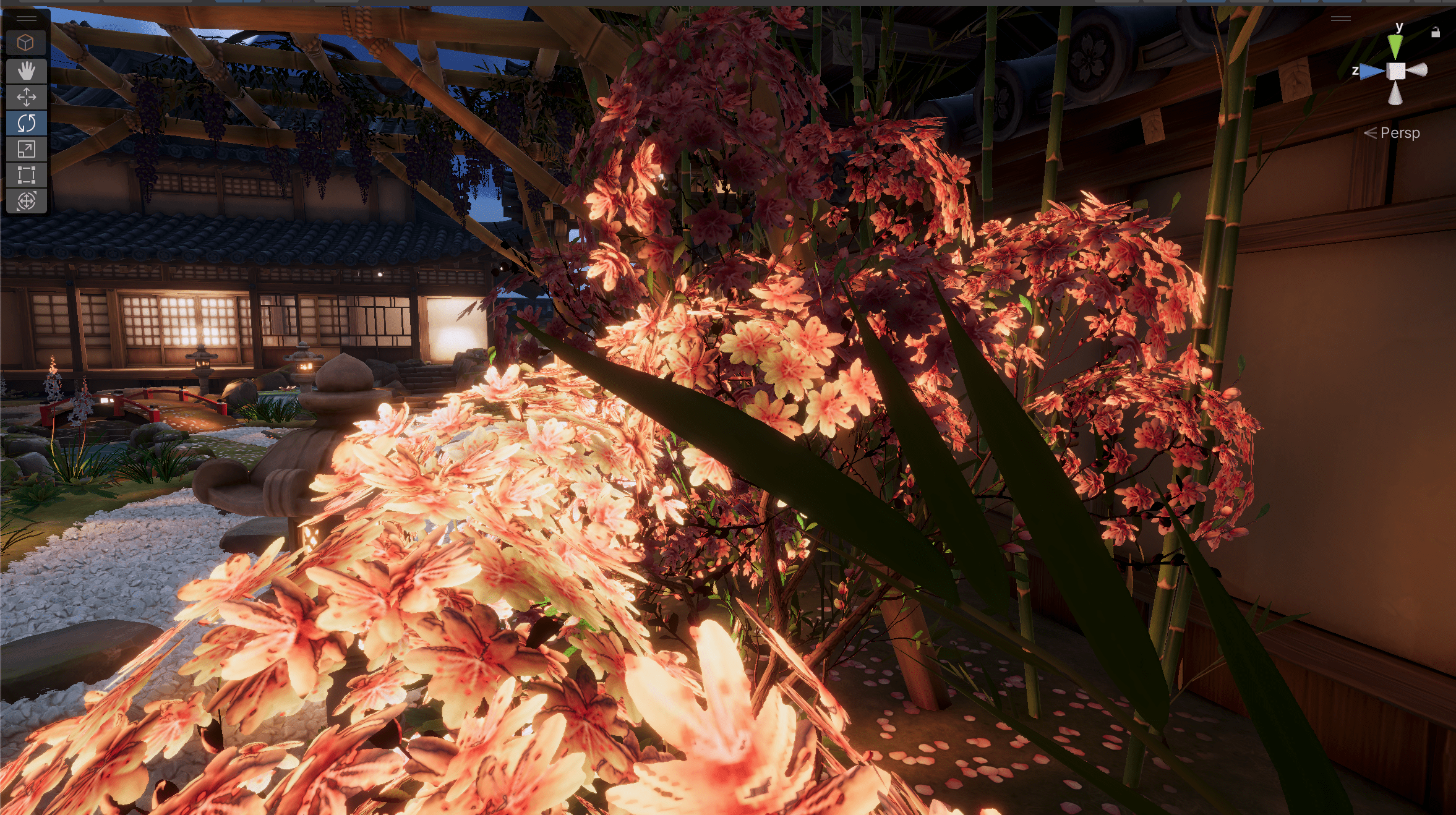

Shader Graphs/VegetationSSS_Graph.shadergraph

Shaders/Water.shadergraph

#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/DeclareDepthTexture.hlsl"
#include "Packages/com.unity.render-pipelines.universal/ShaderLibrary/Lighting.hlsl"


void Reflection_half(	half3 reflectVector,
						float3 positionWS,
                        half perceptualRoughness,
                        half occlusion,
                        float2 normalizedScreenSpaceUV,
                        out half3 output)
{
    output = // output computation
}

void Raymarch_half(	float3 origin,
					float3 direction,
                    half steps,
                    half stepSize,
                    half thickness,
                    out half2 sampleUV,
                    out half valid,
                    out half outOfBounds,
                    out half debug)
{
    // void
}

Water.hlsl

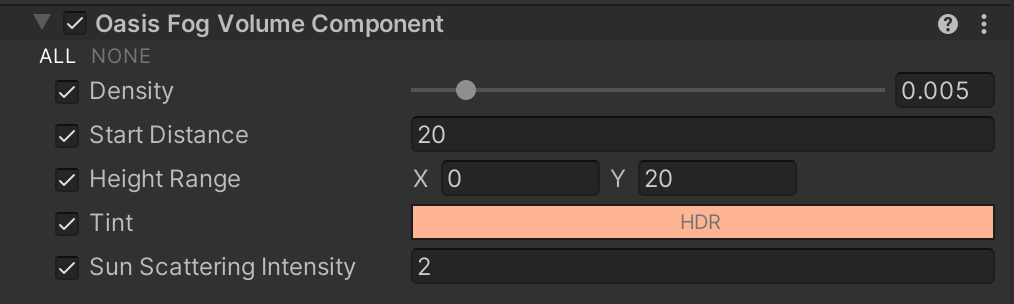

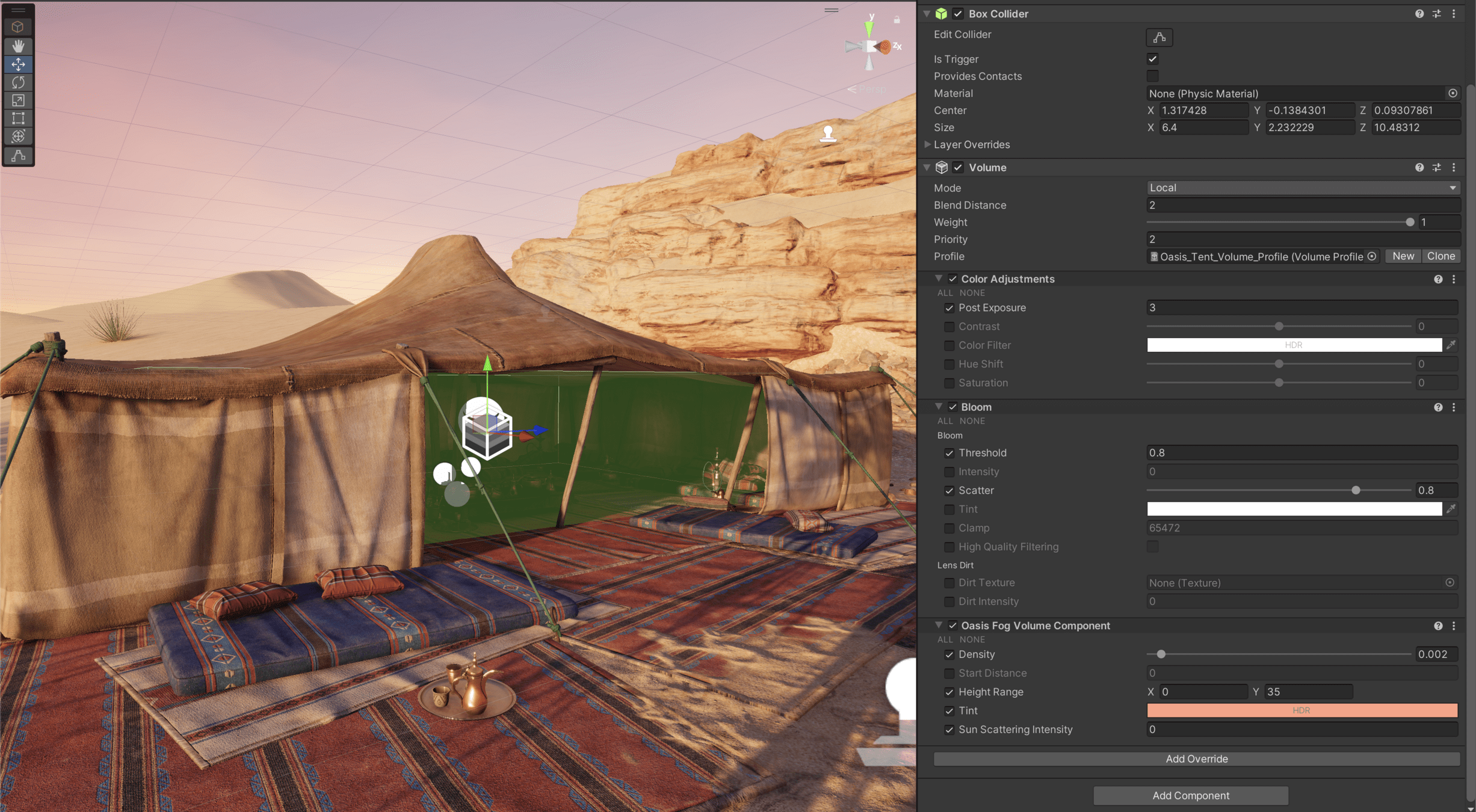

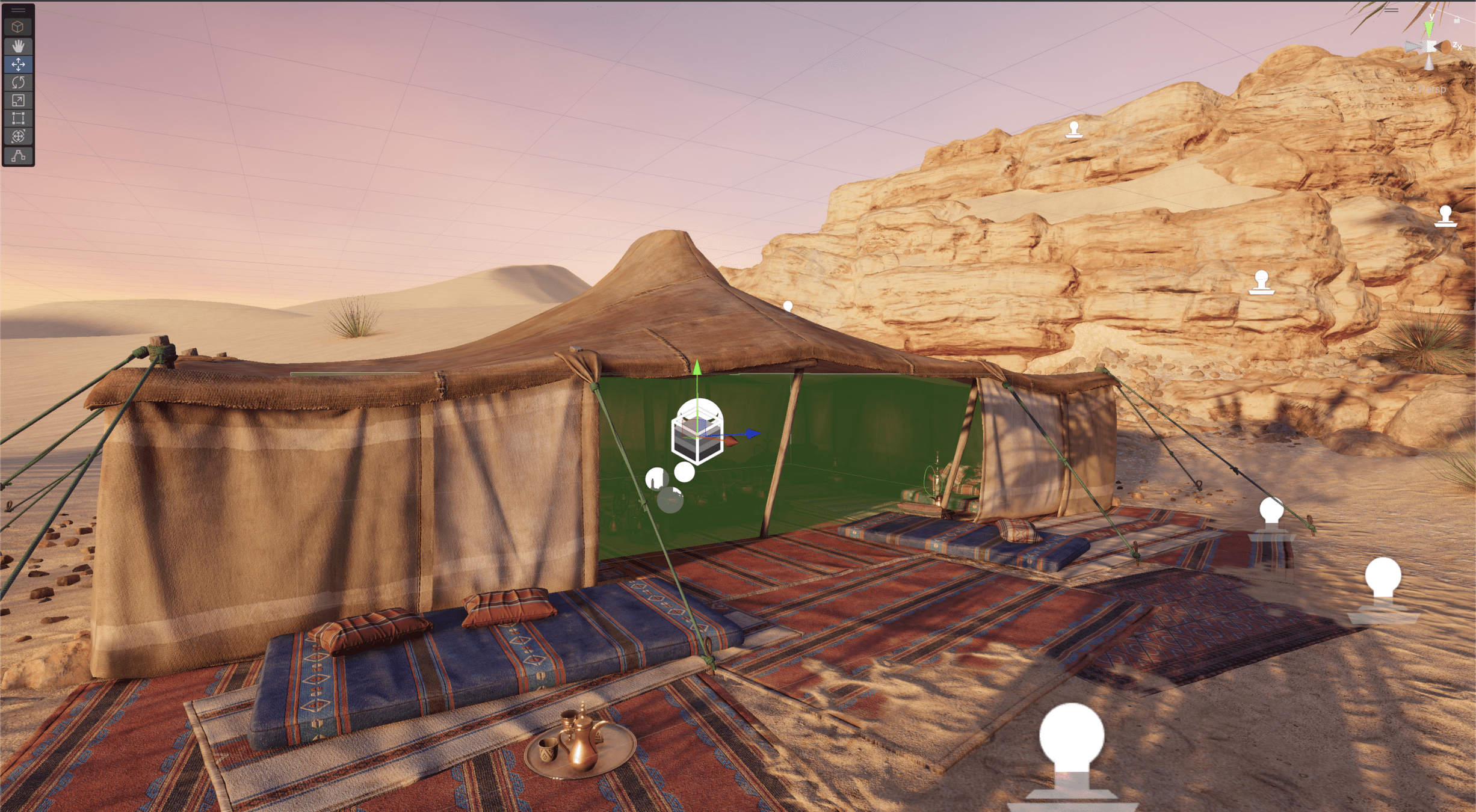

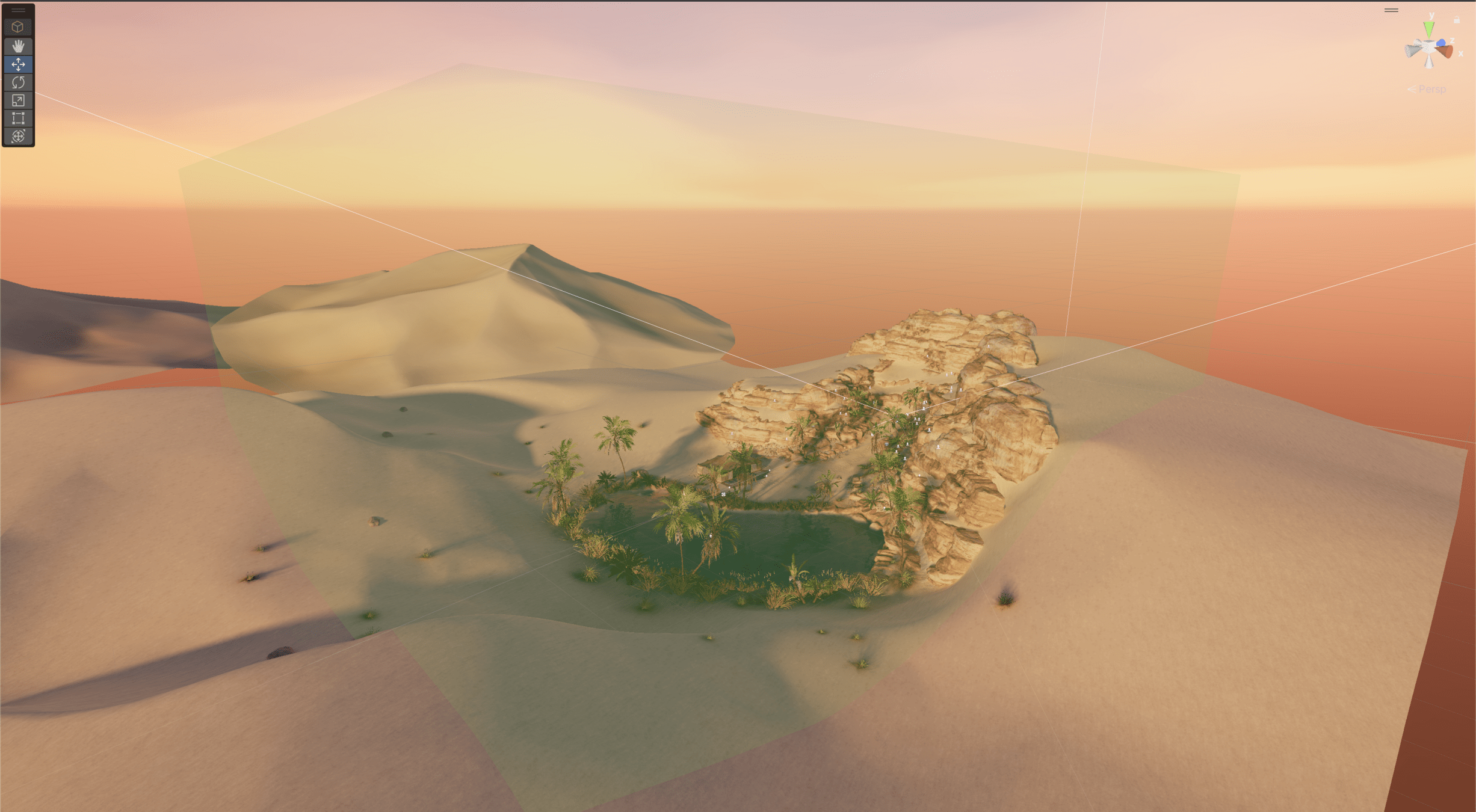

Oasis_Tent_Volume_Profile.asset

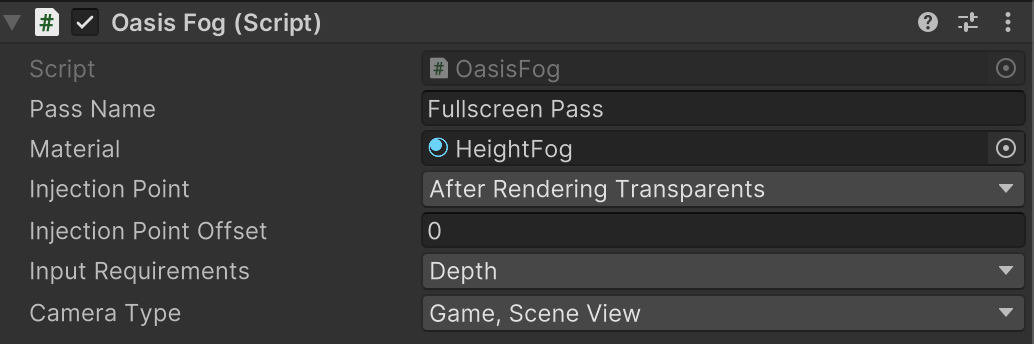

Oasis Fog (GO)

Outdoor Volume

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.Rendering;
using UnityEngine.Rendering.Universal;

public class OasisFog : FullscreenEffectBase<OasisFogPass>
{
}

public class OasisFogPass : FullscreenPassBase
{
    public override void Execute(ScriptableRenderContext context, ref RenderingData renderingData)
    {
		// ...
    }
}

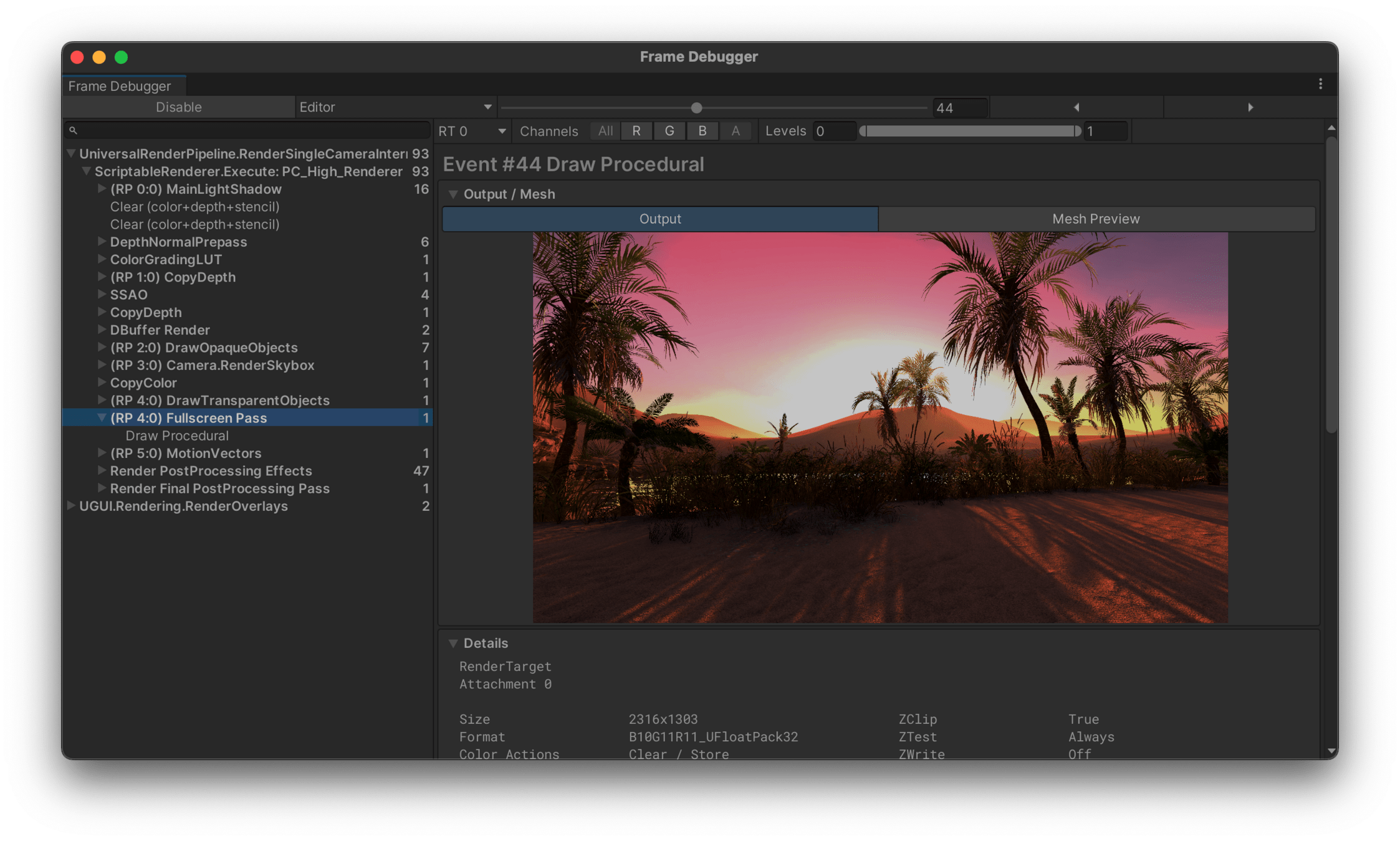

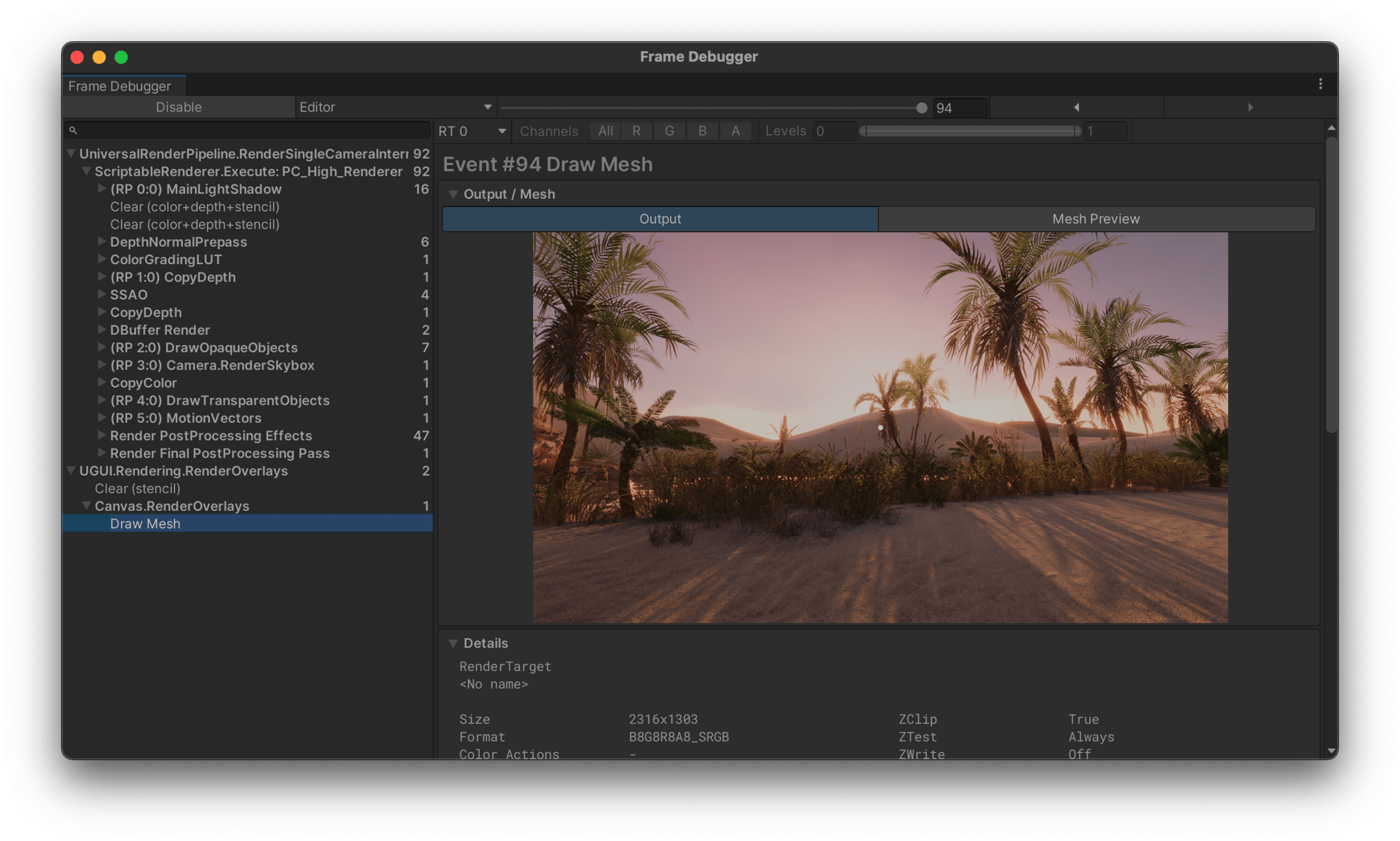

Quality Level: PC_HIGH

Quality Level: PC_LOW

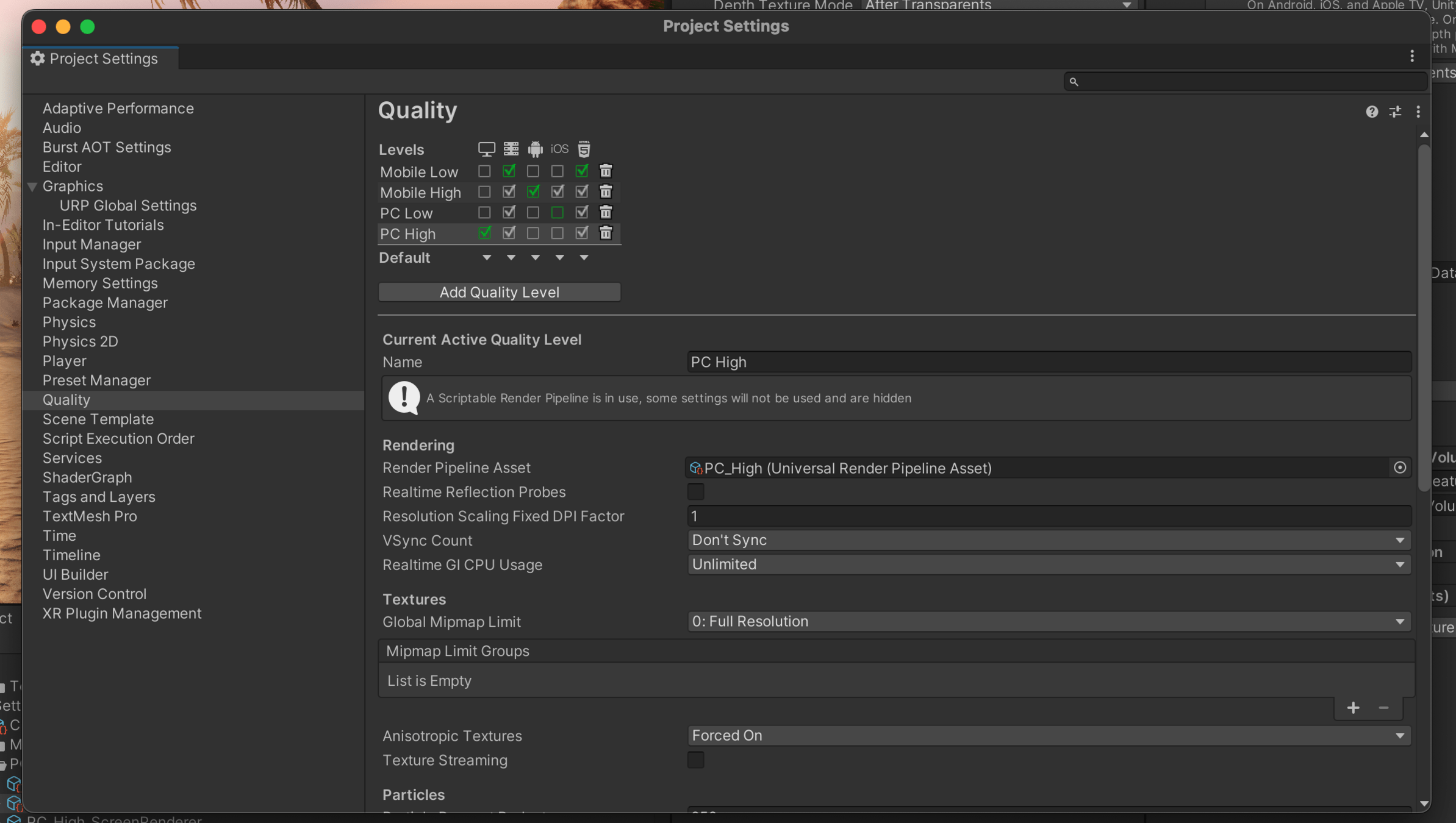

Edit > Project Settings > Quality

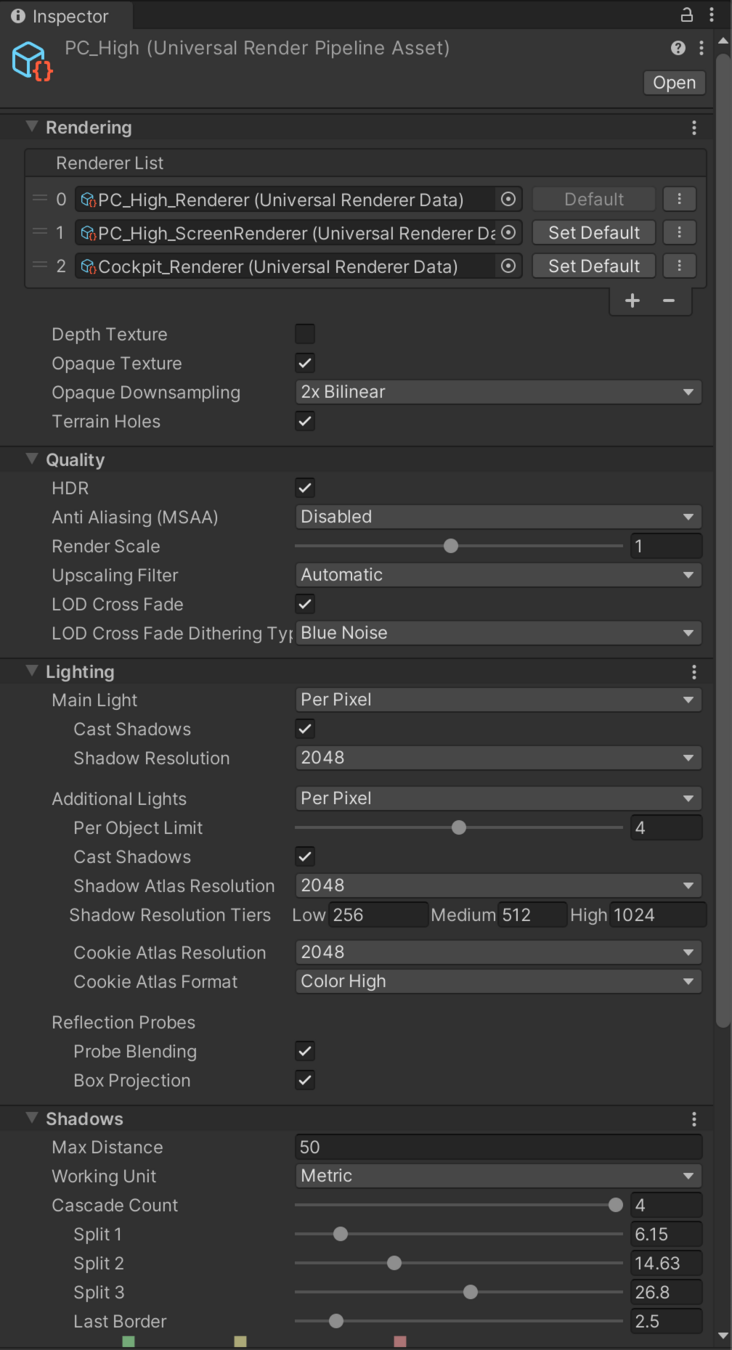

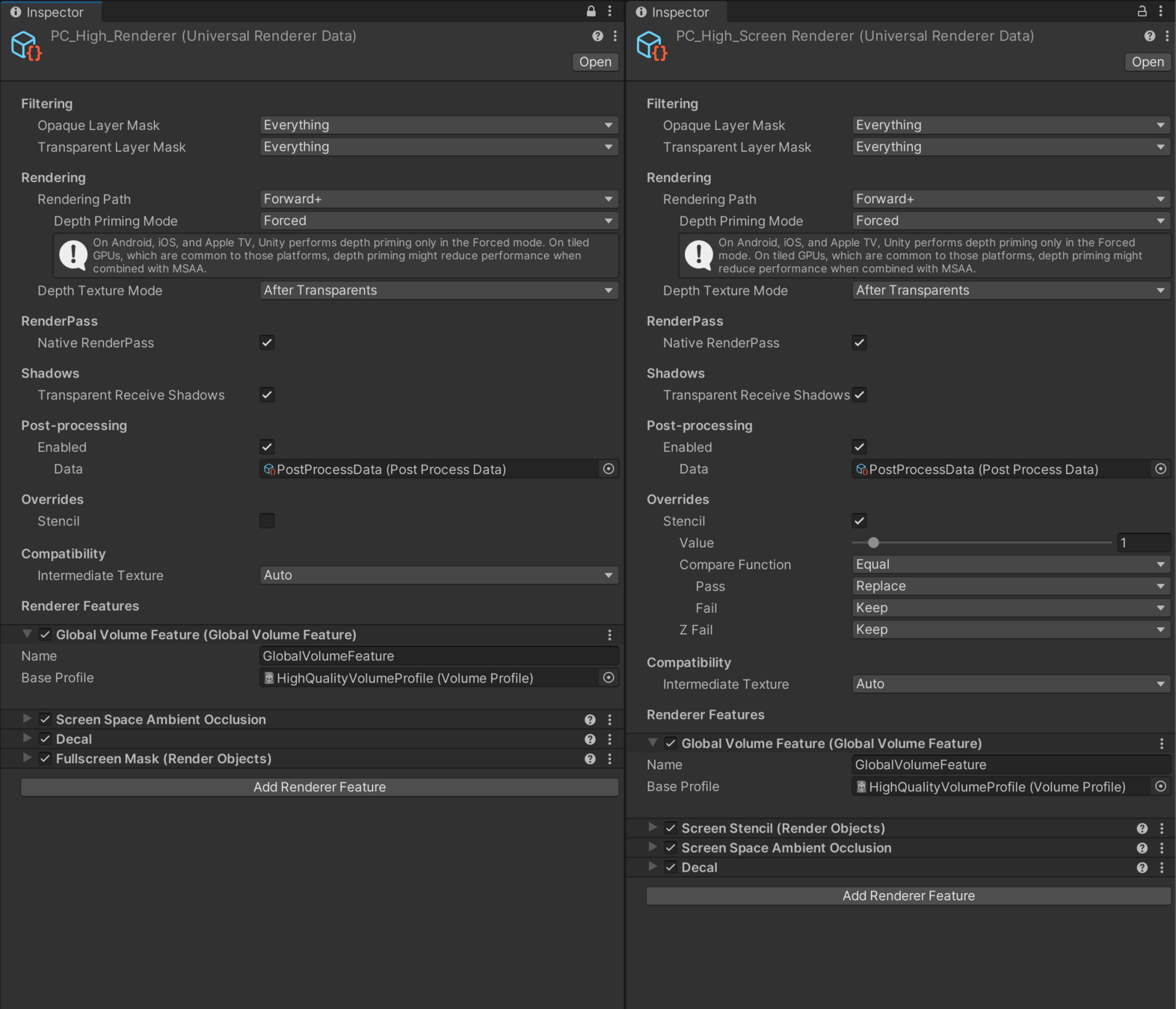

PC_High (Universal Render Pipeline Asset)

PC_High_Renderer

PC_High_ScreenRenderer

Outdoor Volume

OutlineEffect

using UnityEngine;
using UnityEngine.Rendering;

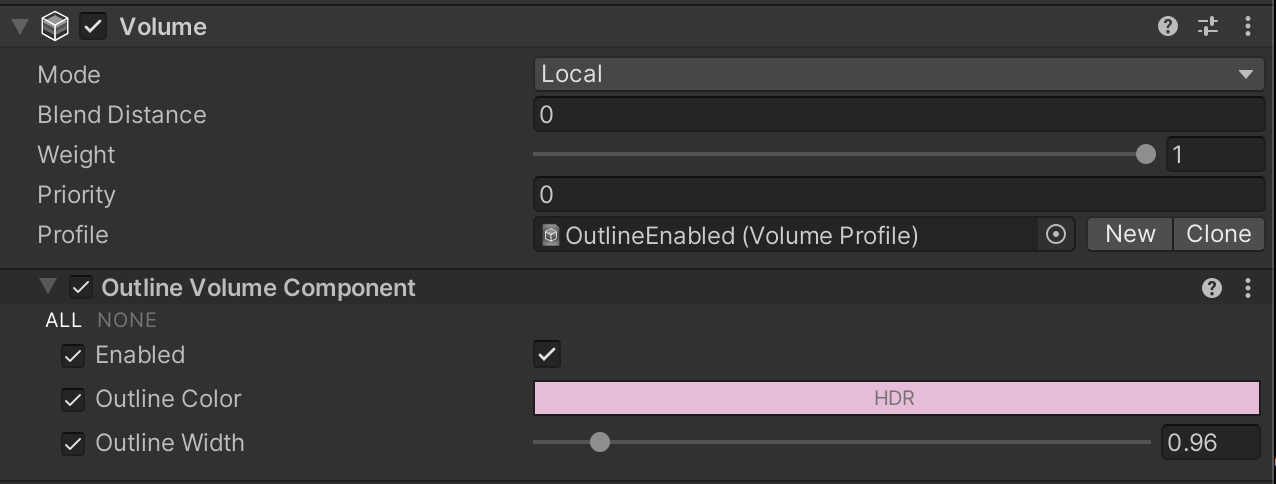

[VolumeComponentMenu("Sample Scene/Outline")]
public class OutlineVolumeComponent : VolumeComponent
{
    public BoolParameter Enabled = new BoolParameter(false);

    public ColorParameter outlineColor = new ColorParameter(Color.white, true, false, false);
    public ClampedFloatParameter outlineWidth = new ClampedFloatParameter(0,0, 10.0f);
}

OutlineVolumeComponent.cs

https://gist.github.com/ArturoNereu/57fe8bb98de2134756d8eeb9f34029e3

using UnityEngine.Rendering;
using UnityEngine.Rendering.Universal;

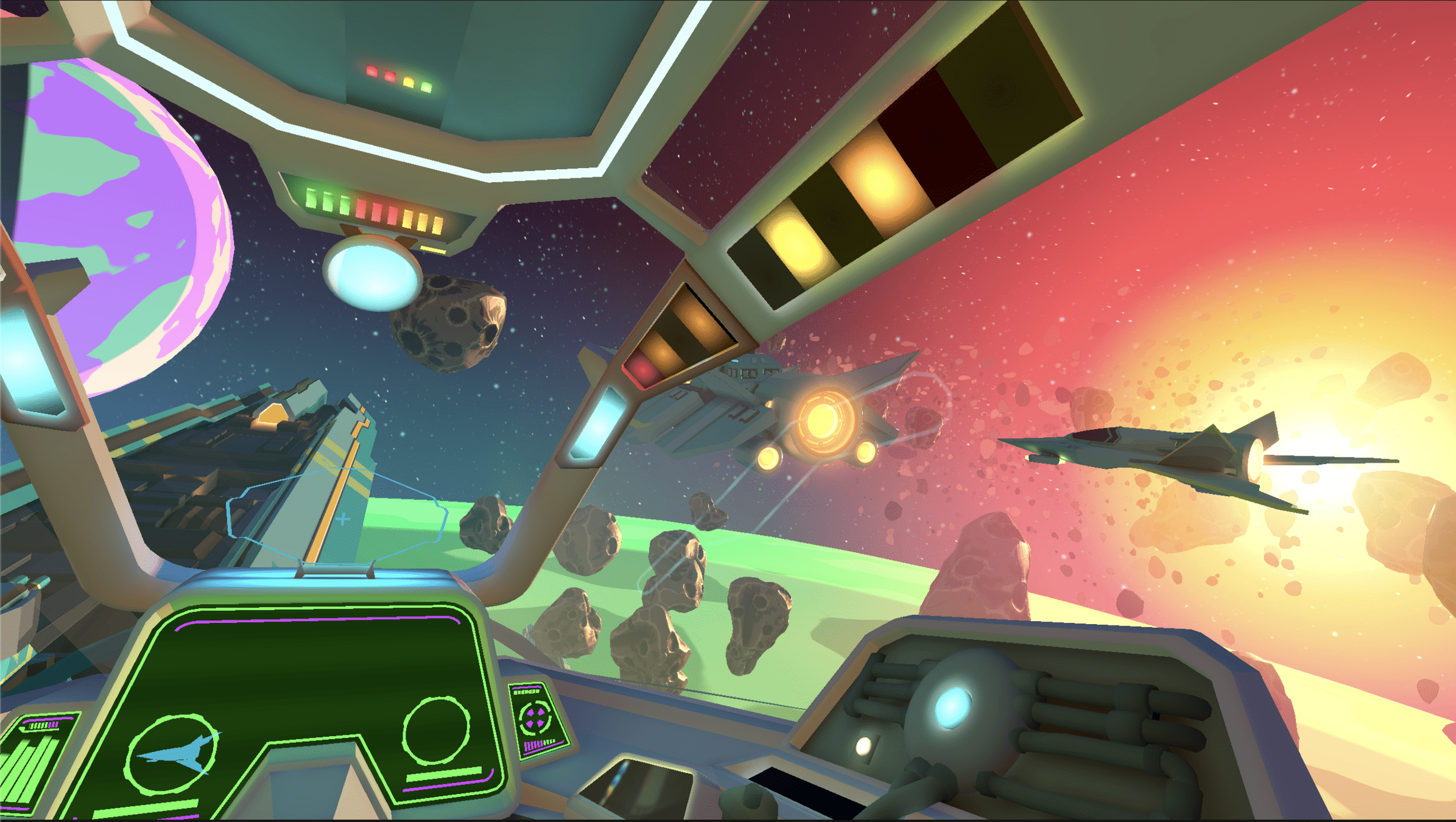

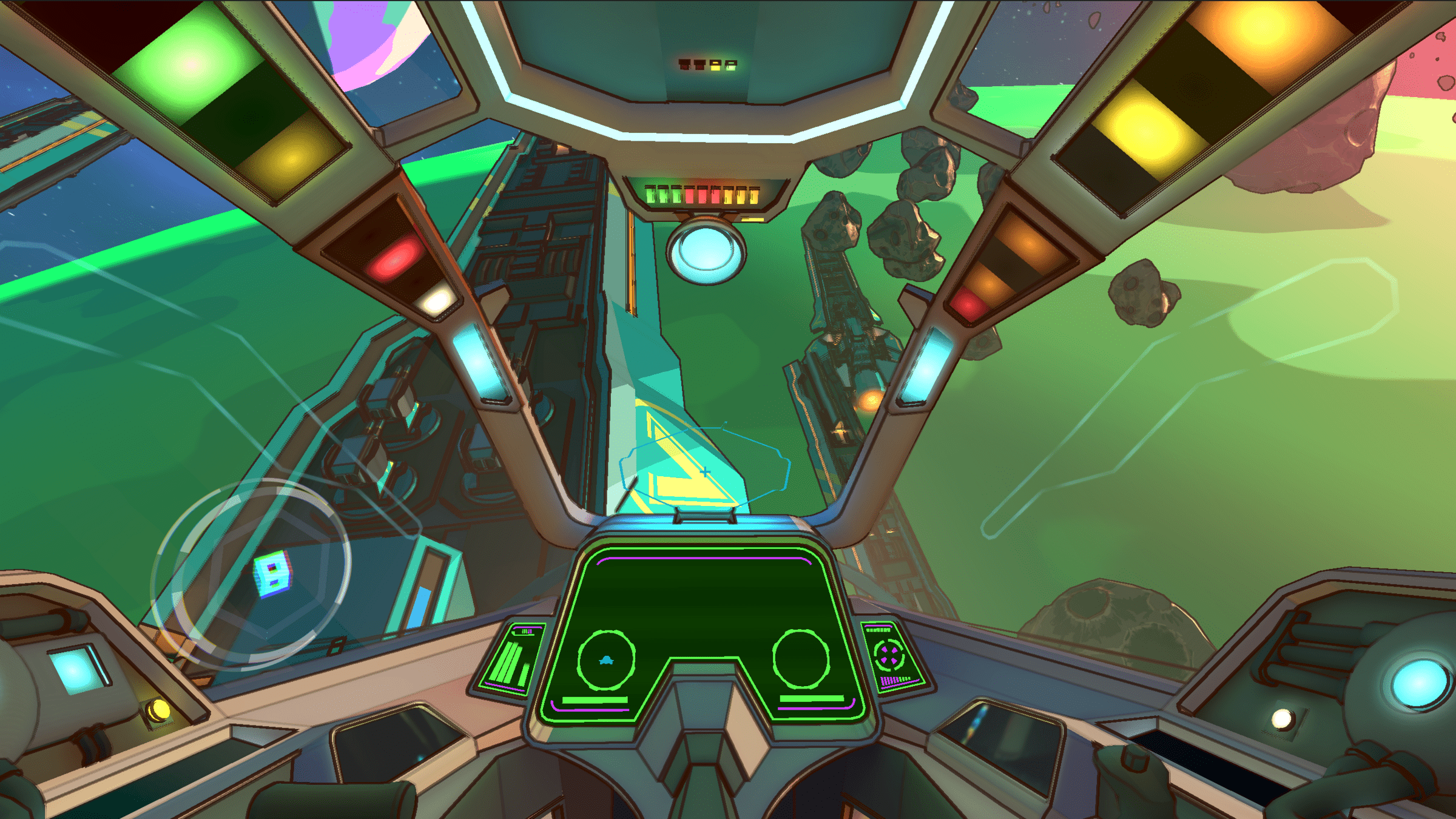

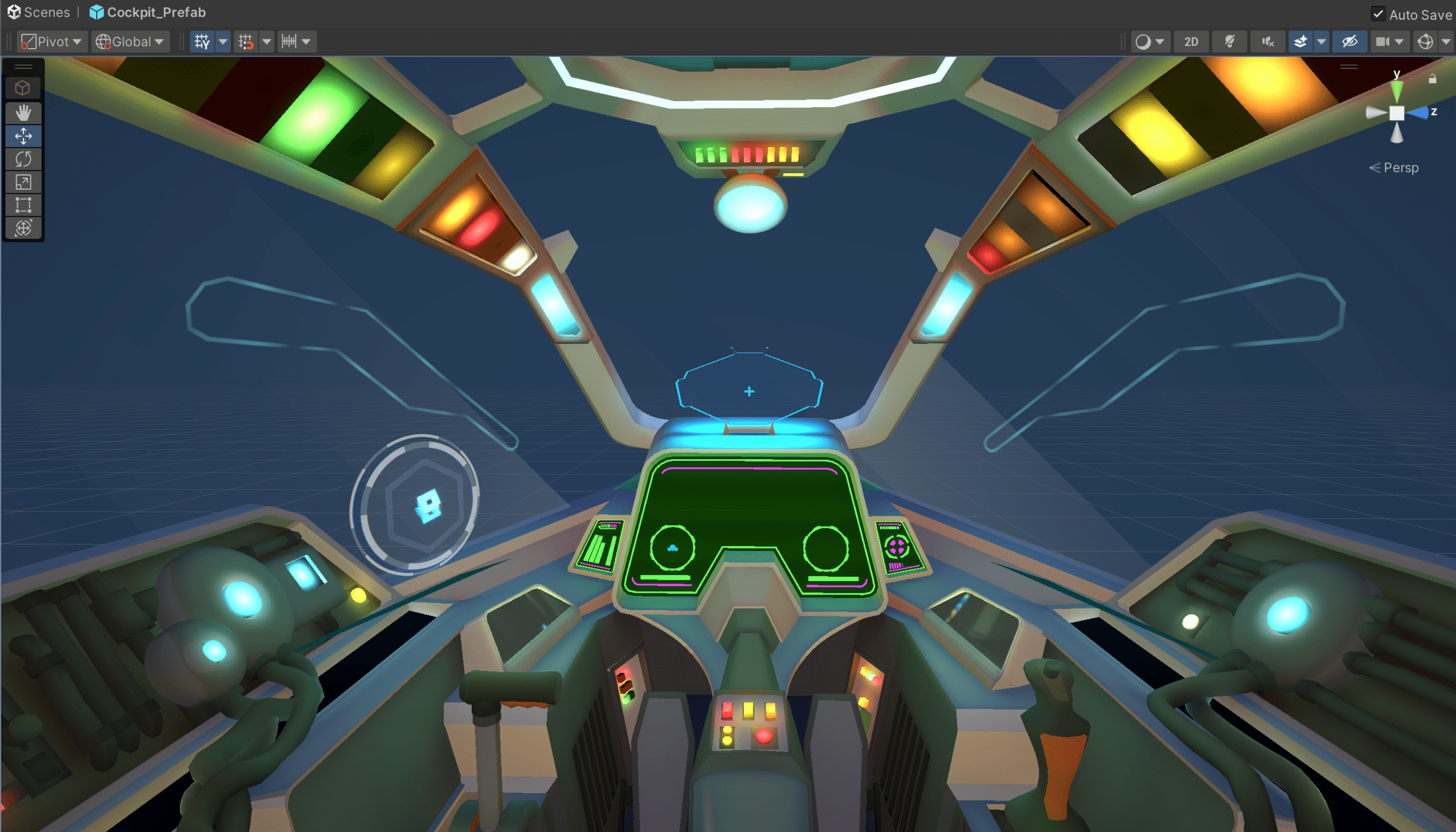

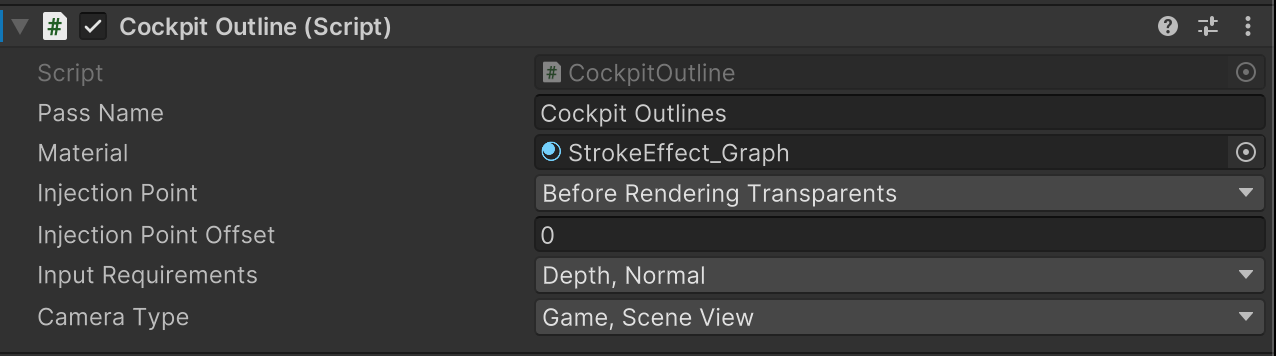

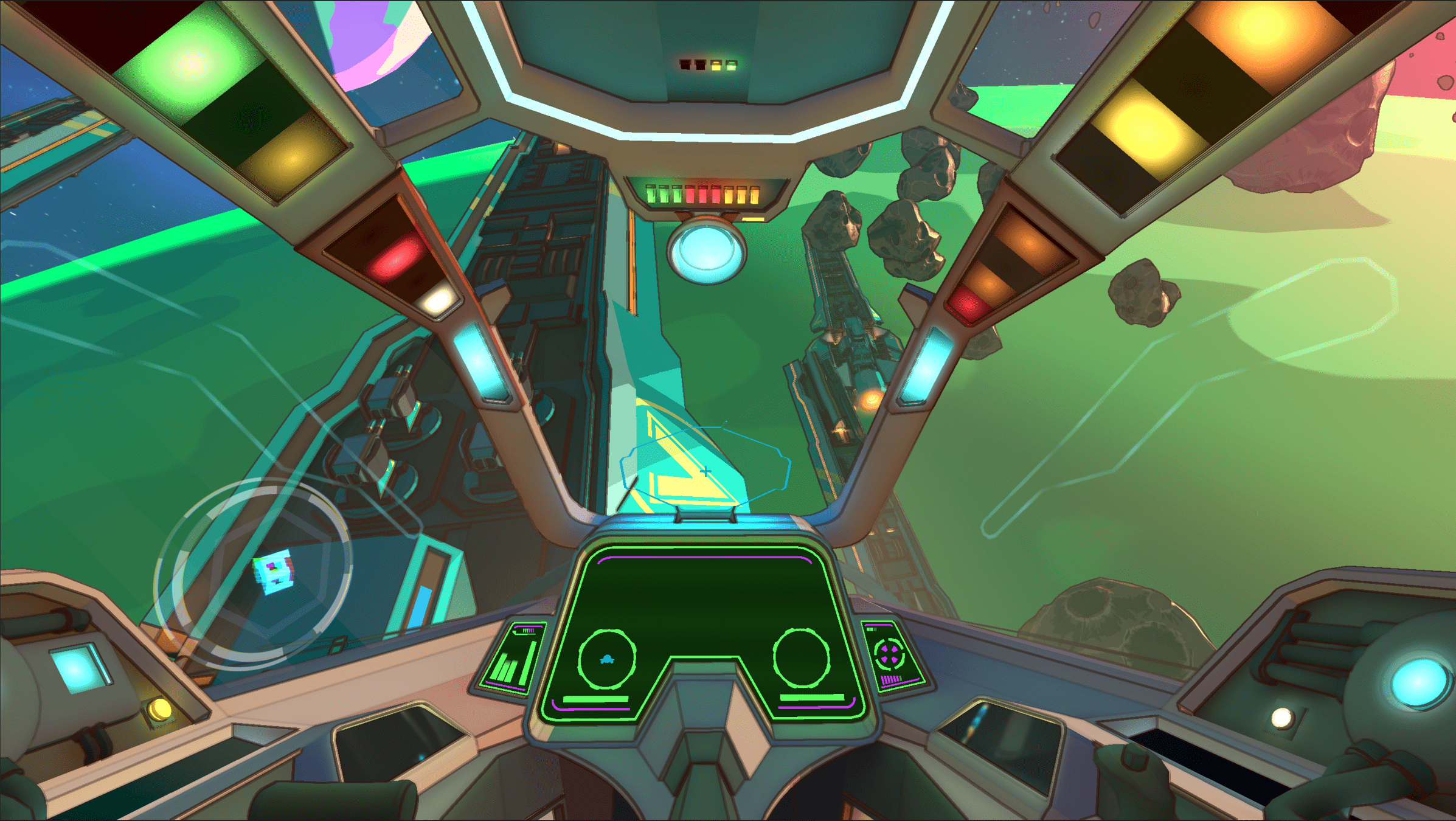

public class CockpitOutline : FullscreenEffectBase<CockpitOutlinePass>
{
}

public class CockpitOutlinePass : FullscreenPassBase
{
    public override void Execute(ScriptableRenderContext context, ref RenderingData renderingData)
    {
        var volumeComponent = VolumeManager.instance.stack.GetComponent<OutlineVolumeComponent>();

        bool enabled = volumeComponent.Enabled.value;

        material.SetColor("_Color", volumeComponent.outlineColor.value);
        material.SetFloat("_OutlineWidth", volumeComponent.outlineWidth.value);

        if (!enabled) return;
        base.Execute(context, ref renderingData);
    }
}

CockpitOutline.cs

https://gist.github.com/ArturoNereu/8735d441a8eaefa027abbb707342833f
